TPSAUX71

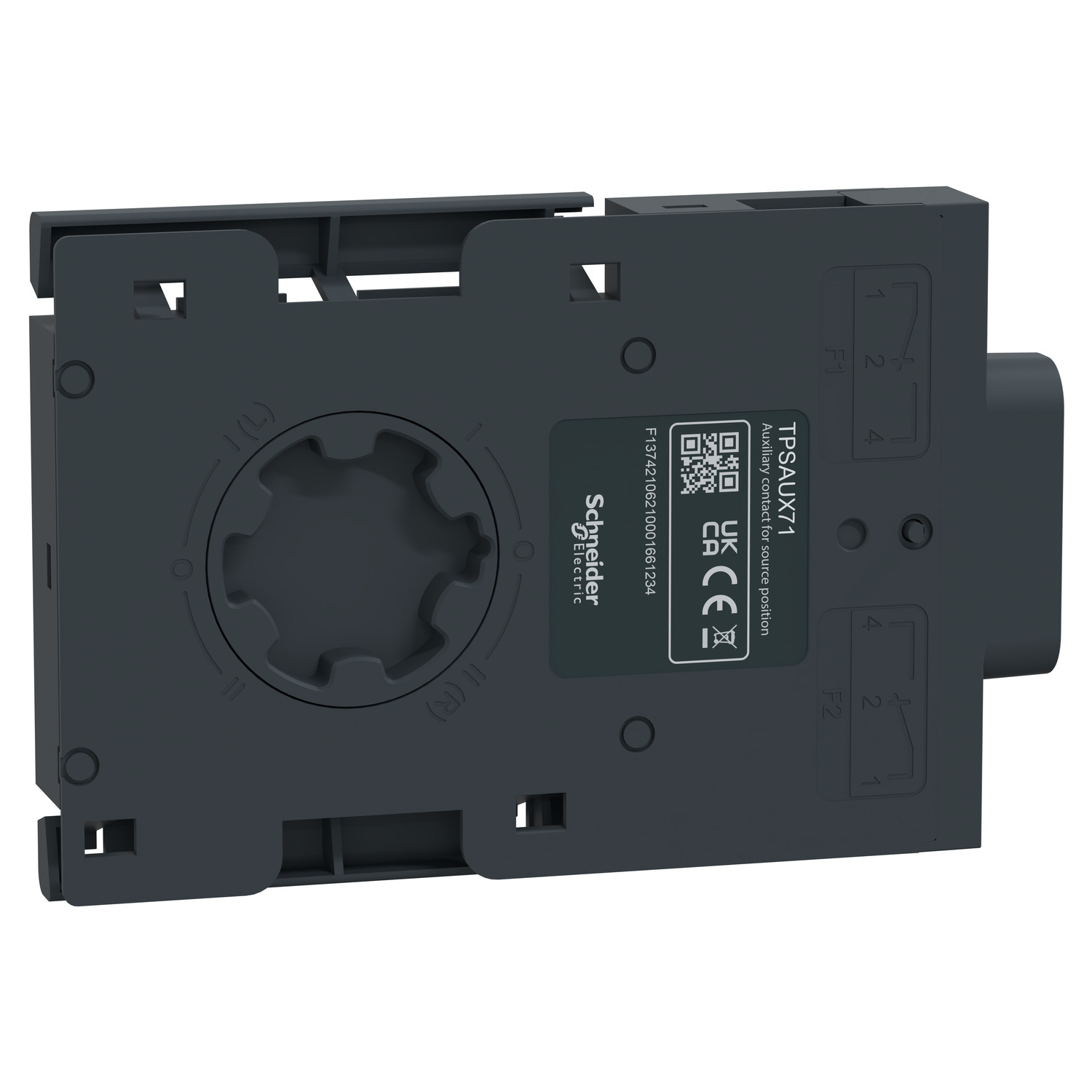

Schneider Electric TPSAUX71 – auxiliary contact, TransferPacT, indication for source I and souce II, frame 800-1600A
Availability● On RequestSubject to confirmation
Estimated Dispatch5-7 business daysTypical for available stock
Warranty12 MonthsNeoIPS warranty
Verified ProductPart number confirmed
Global SourcingSupplier network
Quality Assured12-month warranty
Responsive SupportBefore and after sale
Schneider Electric TPSAUX71: TPSAUX71 is auxiliary contact as signal accessory used to ATSE in TransferPacT series. It is acted as status indication for switch mechanical position on source 1 or source 2. This contact compostion of signalling is 2NC+2NO. The minimum load current is provided 100mA 24VDC. It is mounted mode "clip-on" by side-angled of transfer switch. This spring terminal is fitted with 0.5-1.5 mm²(20-16 AWG) cables.
