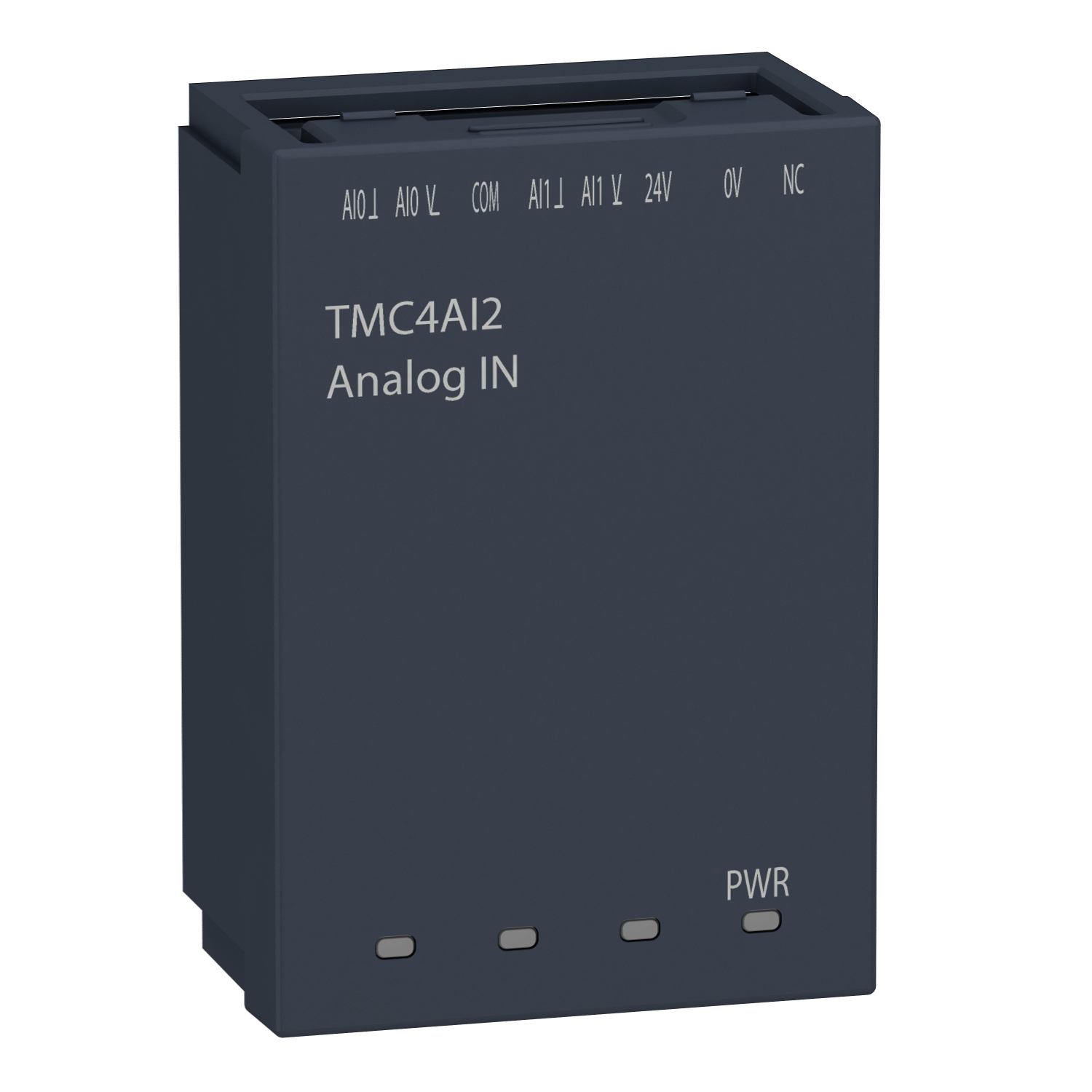

TMC4AI2

Schneider Electric TMC4AI2: This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue input cartridge is for logic controllers. It provides 2 analogue current inputs with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. This analogue input cartridge is compatible with Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.

Manufacturer

Schneider Electric

Part number

TMC4AI2

Product family

Modicon M241

Category

PLCs & Controllers

Technical details

Range: Modicon M241; Voltage: 500V DC; Published sizes: 34mm, 21mm, 50mm; Connection / thread: M241; Length / distance: 30m; Official designation: cartridge M241 - 2 analog current inputs
