TMC2TI2

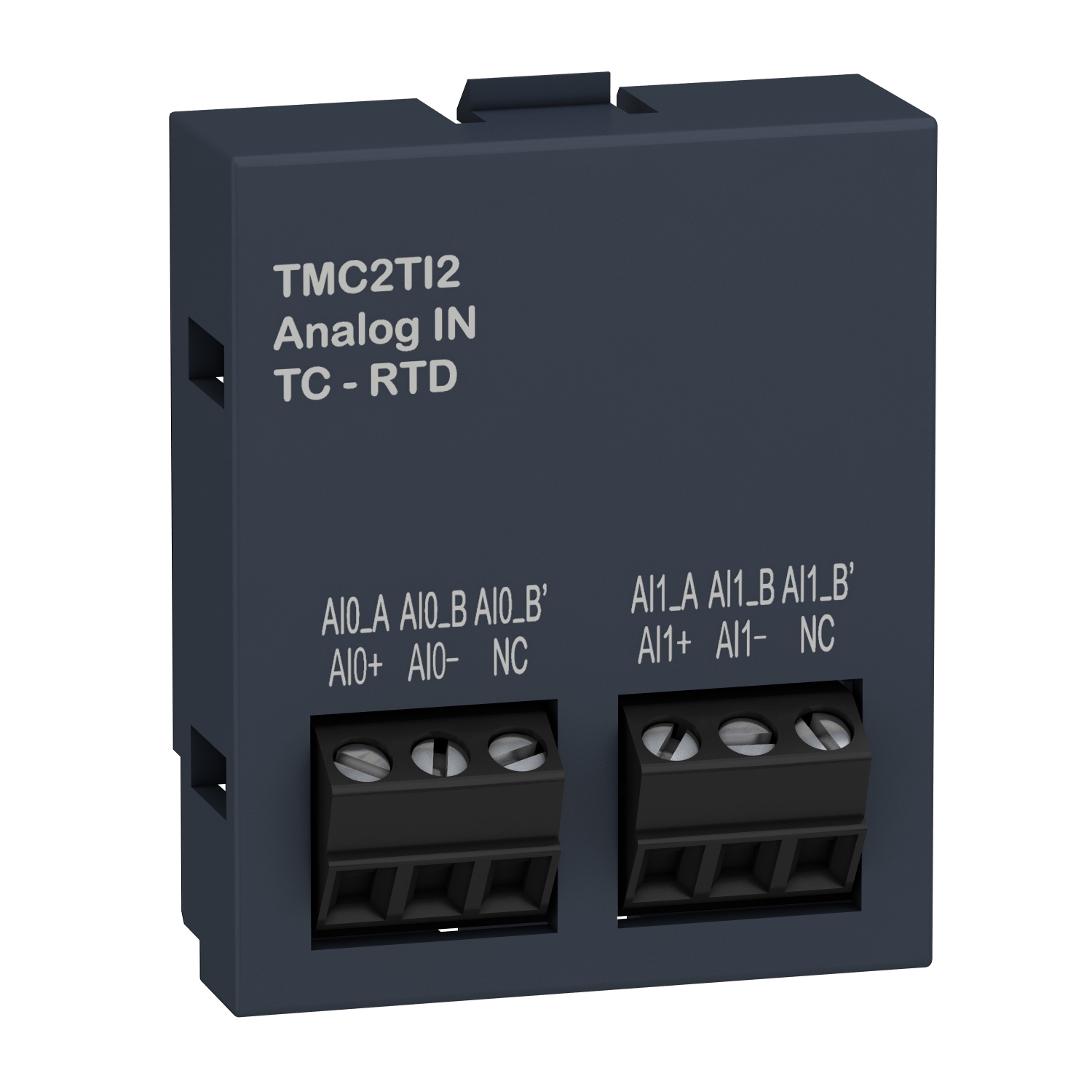

Schneider Electric TMC2TI2: This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 temperature inputs with 14bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks.

Manufacturer

Schneider Electric

Part number

TMC2TI2

Product family

Modicon M221

Category

PLCs & Controllers

Technical details

Range: Modicon M221; Published sizes: 35mm, 15mm, 41mm; Connection / thread: M221; Length / distance: 30m; Official designation: cartridge M221 - 2 temperature inputs - I/O extension
