TM5SAO4H

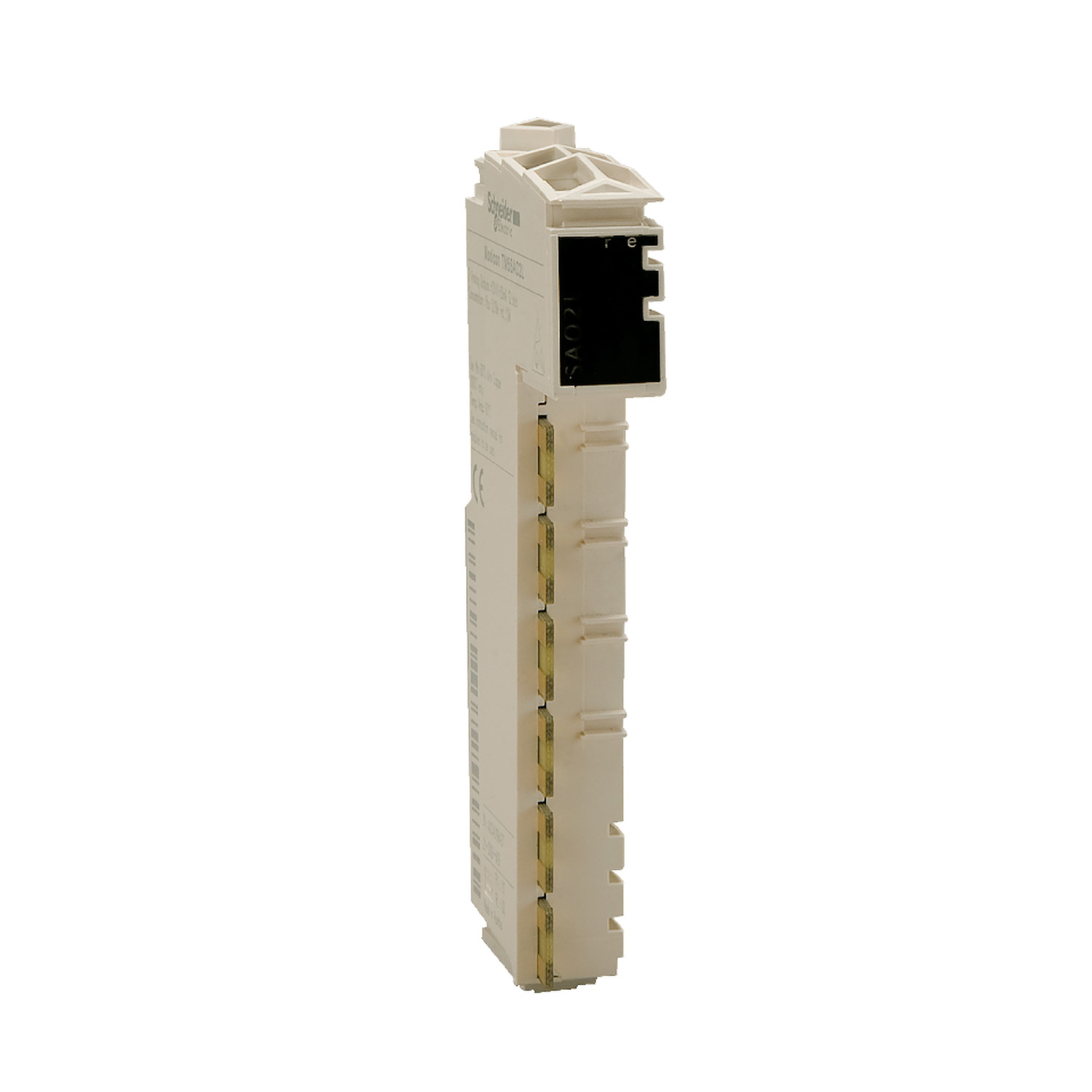

Schneider Electric TM5SAO4H: This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This analogue output module provides 4 analogue outputs with 15bits + sign, ±10V, 0mA to 20mA resolution. It offers analogue output ranges from 0mA to 20mA, ±10V. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 500V AC. The output voltage is ±10V and output current is 0mA to 20mA differential with internal supply. It is an IP20 rated product. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Manufacturer

Schneider Electric

Part number

TM5SAO4H

Product family

Modicon TM5

Category

PLCs & Controllers

Technical details

Range: Modicon TM5; Voltage: 10V, 500V AC; Current: 0 to 20mA, 0mA, 20mA; Published sizes: 35mm; Ingress protection: IP20; Poles / contacts: 2 No; Connection / thread: M258; Official designation: analog output module, Modicon TM5, 4O, +/-10V, 0 to 20mA, 16bits
