TM172PDG28R

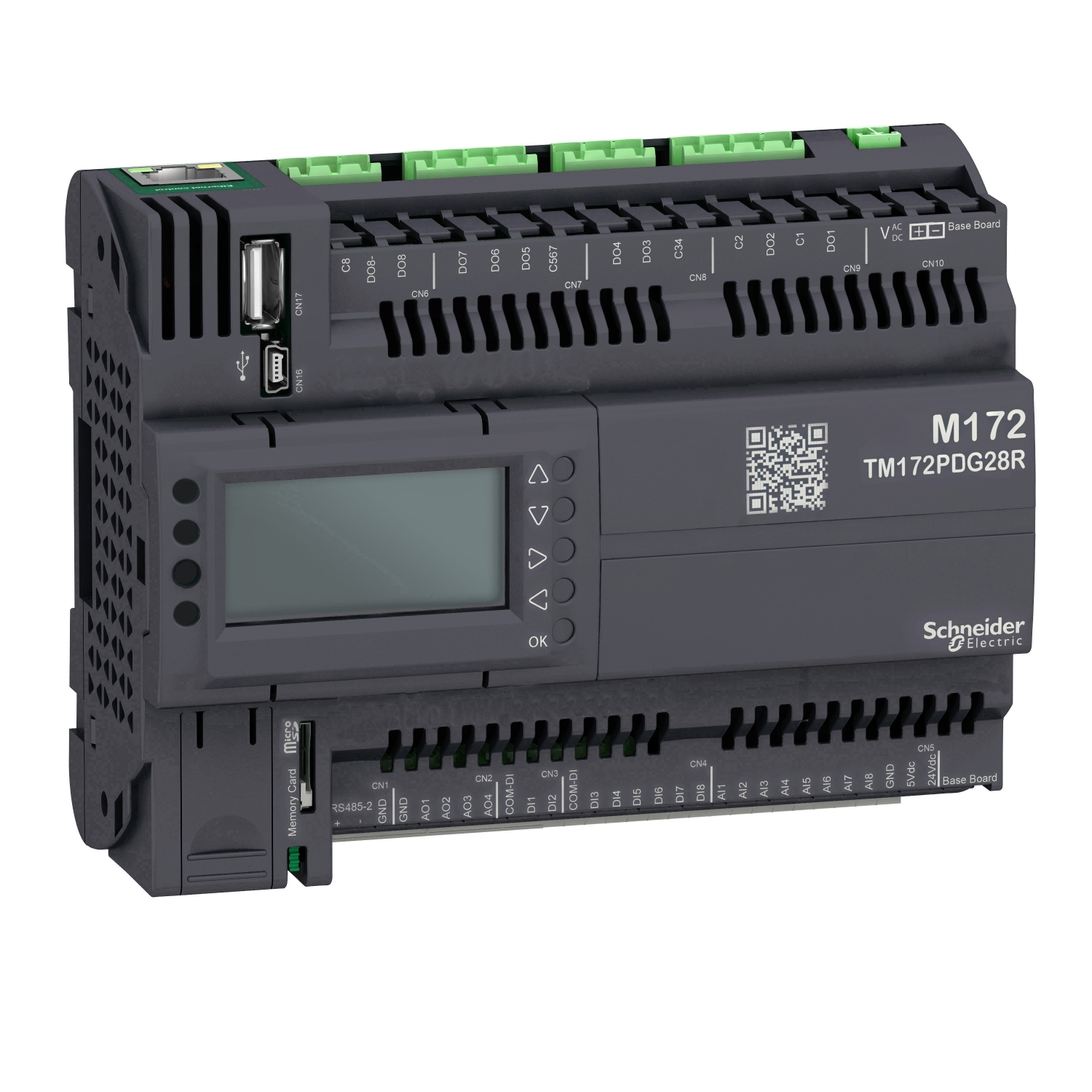

Schneider Electric TM172PDG28R: This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 8 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 8 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.3kg. The main application of this module is HVAC control. This product is certified by CE, EAC, CSA and CURus. It meets EN/IEC 60730 standard. It is sold in a 1-piece package. It is suitable for panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Manufacturer

Schneider Electric

Part number

TM172PDG28R

Product family

Modicon M171

Category

PLCs & Controllers

Technical details

Range: Modicon M171; Voltage: 24V AC, 0V, 10V; Current: 2.5mA, 4mA, 20mA; Published sizes: 144mm, 60.5mm, 110mm; Ingress protection: IP20; Connection / thread: M172, M171; Official designation: Modicon M172 Performance Display 28 I/Os, Ethernet, Modbus
