RD78G8

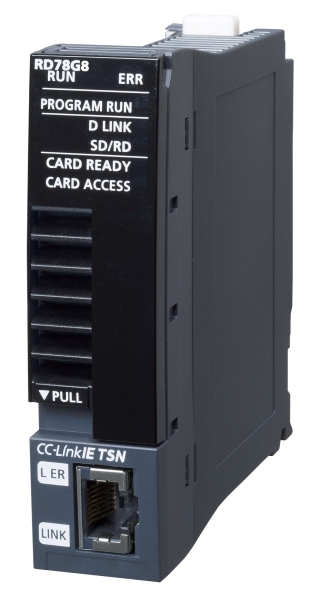

Mitsubishi Electric RD78G8 is a motion controller CPU in the RD78G. Key characteristics include controlled axes maximum 8 axes, interpolation linear interpolation (maximum 4 axes), 2 axes circular interpolation, helical interpolation (3 axes), servo amplifier connection CC-Link IE TSN, 5 VDC internal current 1.93 A, dimensions 106.0 (H) × 27.8 (W) × 110.0 (D) mm, weight 0.26 kg.

Manufacturer

Mitsubishi Electric

Part number

RD78G8

Product family

RD78G

Category

PLC I/O & Modules

Technical details

Controlled axes: maximum 8 axes; Interpolation: linear interpolation (maximum 4 axes), 2 axes circular interpolation, helical interpolation (3 axes); Servo amplifier connection: CC-Link IE TSN; 5 VDC internal current: 1.93 A; Dimensions: 106.0 (H) × 27.8 (W) × 110.0 (D) mm; Weight: 0.26 kg

Weight

0.26 kg

Dimensions

106.0 (H) × 27.8 (W) × 110.0 (D)
