R9D01616

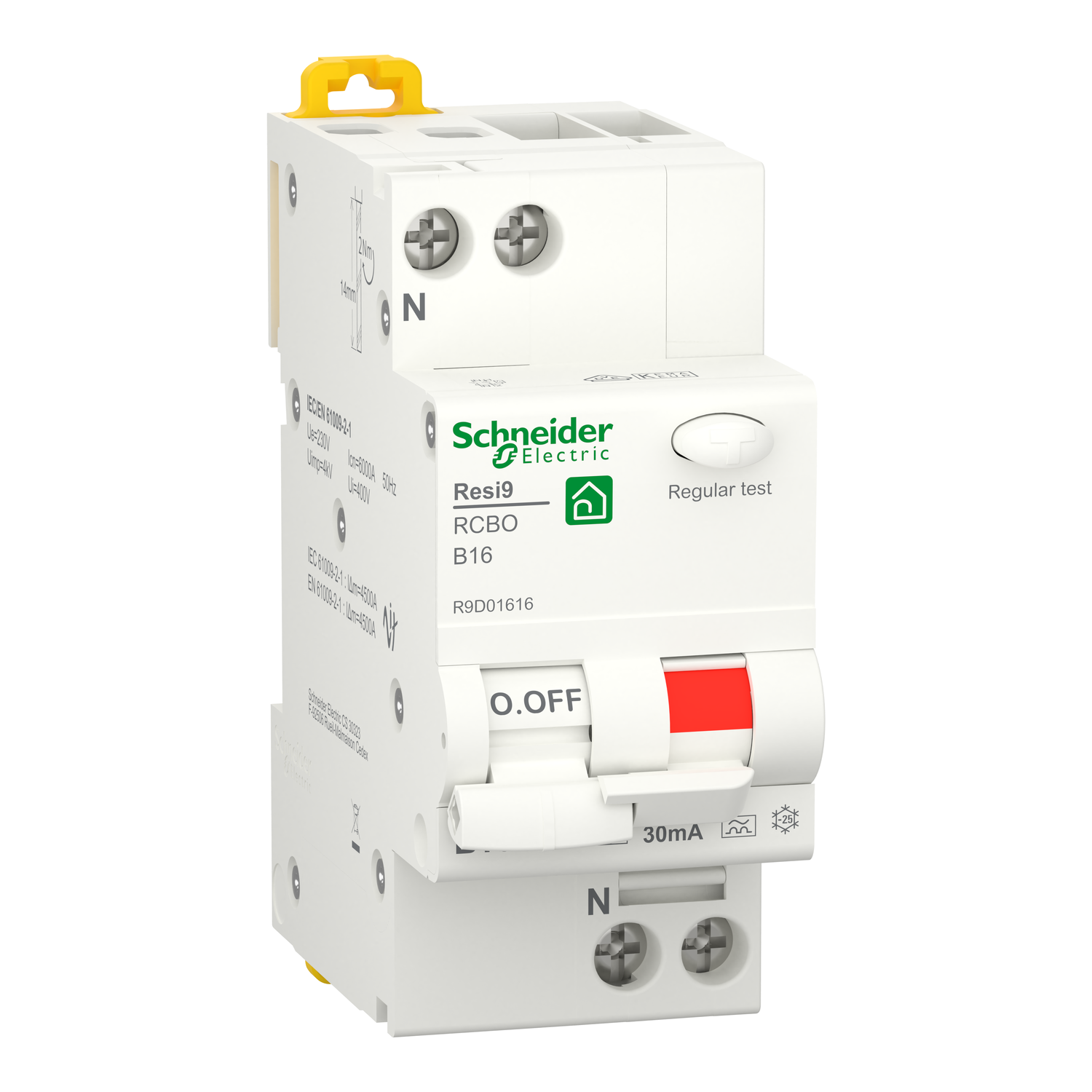

Schneider Electric R9D01616: This Resi9 is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 16A In rated current and B tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A according BS EN 61009-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A T push-test button is positioned on the front of the device for testing that product is operational. This product is compliant with EN/IEC 61009-1 standard. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 36mm x (H) 82mm x (D) 70.5mm. The weight is 186g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 40°C. The storage temperature is from -40°C to 60°C.

Manufacturer

Schneider Electric

Part number

R9D01616

Product family

Resi9

Category

Circuit Protection

Technical details

Range: Resi9; Voltage: 230VAC; Current: 16A, 6000A, 30mA; Published sizes: 9mm, 36mm, 82mm, 70.5mm; Ingress protection: IP20, IP40; Poles / contacts: 1P+N; Temperature: -25°C, 40°C, -40°C; Colour: white, RAL9003; Official designation: Residual current breaker with overcurrent protection (RCBO), Resi9, 1P+N, 16A, B curve, 6000A, A type, 30mA
