Q172DCPU

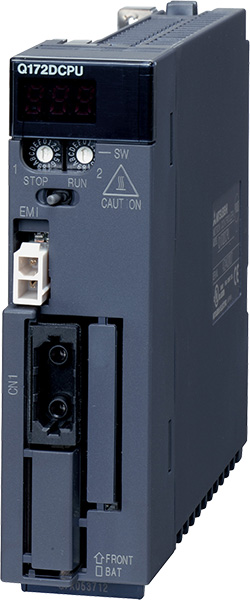

Mitsubishi Electric Q172DCPU is a motion controller CPU in the Q172DCPU. Key characteristics include controlled axes maximum 8 axes, interpolation linear interpolation (maximum 4 axes), 2 axes circular interpolation, helical interpolation (3 axes), programming language (SV13/SV22) motion SFC, dedicated instructions, mechanical-support language (SV22), servo program capacity 16k steps, positioning points (SV13/SV22) 3200 points (indirect addressing available), operation cycle (SV13) 0.44 ms/1 to 6 axes 0.88 ms/7…

Manufacturer

Mitsubishi Electric

Part number

Q172DCPU

Product family

Q172DCPU

Category

PLCs & Controllers

Technical details

Controlled axes: maximum 8 axes; Interpolation: linear interpolation (maximum 4 axes), 2 axes circular interpolation, helical interpolation (3 axes); Programming language (SV13/SV22): motion SFC, dedicated instructions, mechanical-support language (SV22); Servo program capacity: 16k steps; Positioning points (SV13/SV22): 3200 points (indirect addressing available); Operation cycle (SV13): 0.44 ms/1 to 6 axes 0.88 ms/7 to 8 axes; Servo amplifier connection: connected via SSCNET III (1 network); SSCNET networks: 1 network; 5 VDC internal current: 1.25 A; Dimensions: 98.0 (H) × 27.4 (W) × 119.3 (D) mm; Weight: 0.33 kg

Weight

0.33 kg

Dimensions

98.0 (H) × 27.4 (W) × 119.3 (D)
