PKZ085

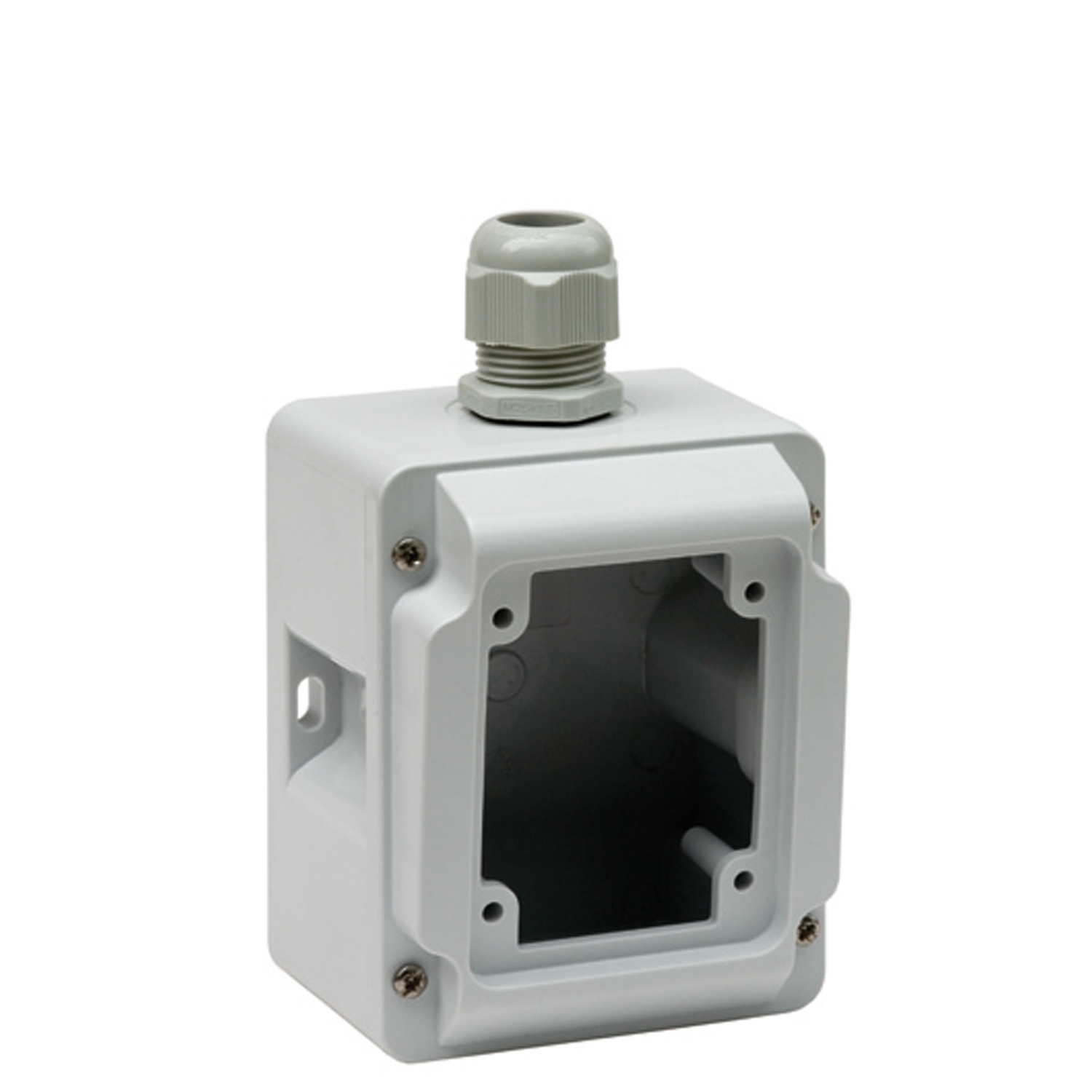

Schneider Electric PKZ085: This PratiKa back box allows to install a socket 16A 3 or 4 poles. It is surface mounted on walls to supply appliances with wander plugs. It fits the PratiKa IP44/IP67 panel sockets with screw version. The dimension of the flange is (W) 65mm x (H) 85mm. The degree of protection is IP67 and IK09. The fire resistance is 850°C. The colour of the back box is grey (RAL 7035).

Manufacturer

Schneider Electric

Part number

PKZ085

Product family

PratiKa

Category

Cables, Plugs & Connectors

Technical details

Range: PratiKa; Current: 16 A; Dimensions: 65 x 85 mm; Published sizes: 85 mm, 65mm; Ingress protection: IP67, IP44; Impact resistance: IK09; Temperature: 850°C; Colour: grey, RAL 7035; Official designation: PratiKa - back box - 16 A - 3 or 4 P - surface mounted - 65 x 85 mm - IP67

Dimensions

65 x 85

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
