PKY32G435

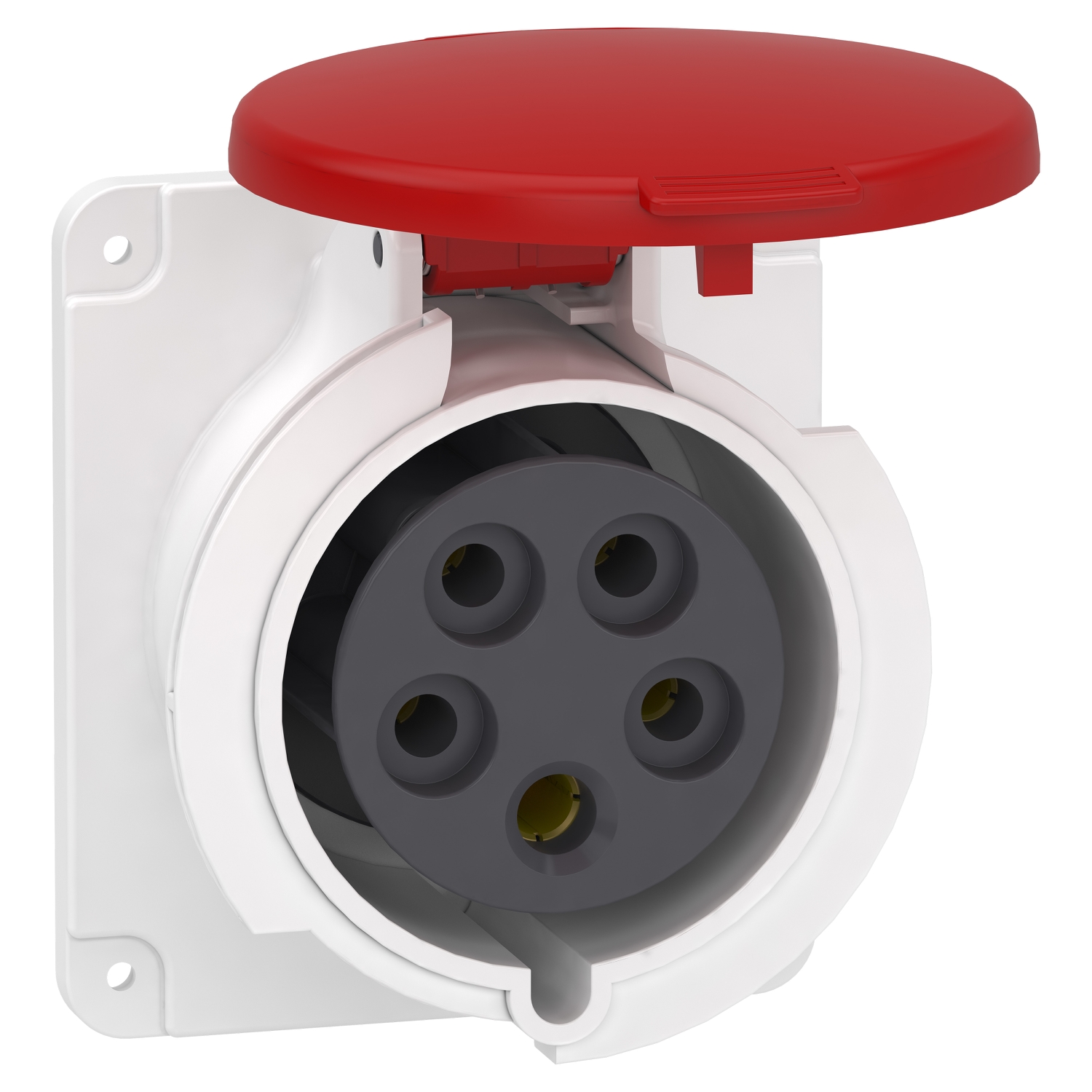

Schneider Electric PKY32G435: This Pratika industrial socket with fast connection connection is straight panel mounted. It has 3P+N+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 98mm x (H) 100mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 6mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Manufacturer

Schneider Electric

Part number

PKY32G435

Product family

PratiKa

Category

Enclosures & Accessories

Technical details

Range: PratiKa; Voltage: 415 V AC, 400VAC; Current: 32A; Frequency: 50Hz, 60Hz; Published sizes: 98mm, 100mm, 2.5mm, 6mm; Ingress protection: IP44; Impact resistance: IK08; Poles / contacts: 3P, 3P+N; Duration: 6h; Temperature: 850°C; Colour: grey, RAL 7035, red; Official designation: PratiKa socket - fast - straight - 32A - 3P + N + E - 380...415 V AC - panel
