PKY16F713

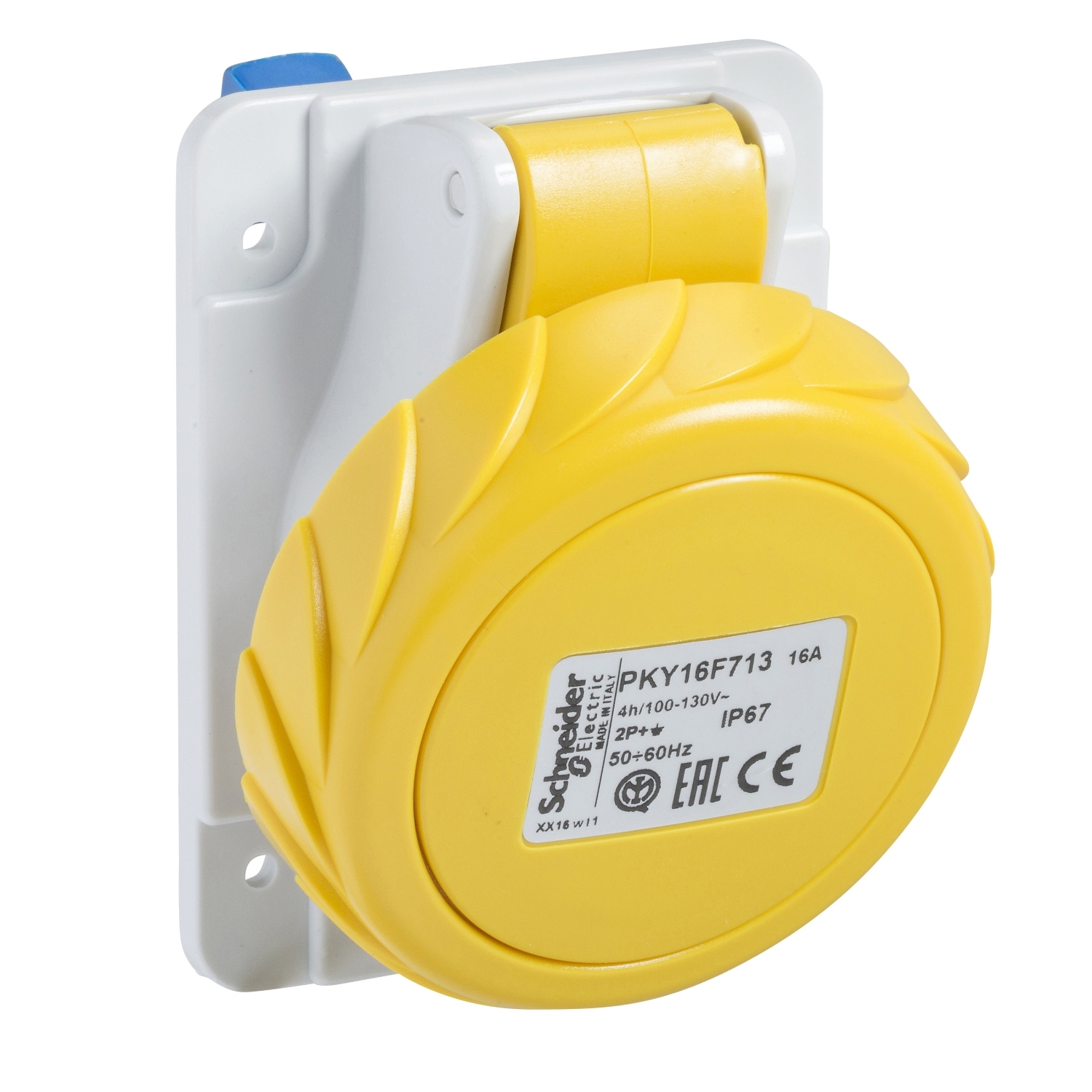

Schneider Electric PKY16F713: This PratiKa industrial socket with fast connection is angled panel-mounted. It has 2P+E pole, rated current is 16A and the operating voltage is 100VAC to 130VAC. The dimensions of the base plate are (W) 65mm x (H) 85mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 2.5mm² cables. The color of the socket is grey (RAL 7035) with yellow easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 4h.
