PKF16W434

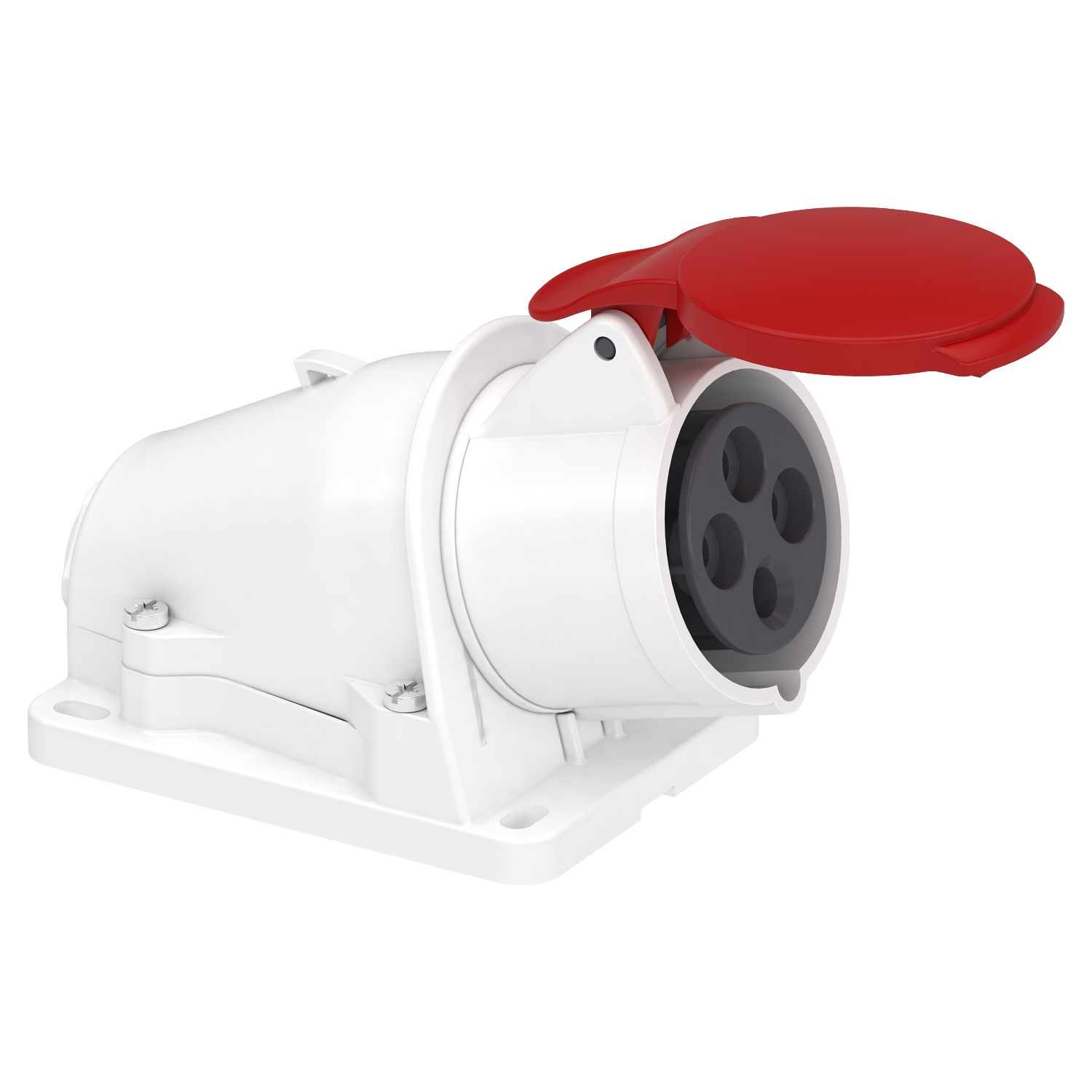

Schneider Electric PKF16W434: This Pratika industrial socket with captive screws connection is angled wall mounted. It has 3P+E poles, rated current is 16A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 75mm x (H) 131mm. The degree of protection is IP44 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 4mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Manufacturer

Schneider Electric

Part number

PKF16W434

Product family

PratiKa

Category

Enclosures & Accessories

Technical details

Range: PratiKa; Voltage: 415 V AC, 380VAC; Current: 16A; Frequency: 50Hz, 60Hz; Published sizes: 75mm, 131mm, 1mm, 4mm; Ingress protection: IP44; Impact resistance: IK08; Poles / contacts: 3P; Duration: 6h; Temperature: 750°C; Colour: grey, RAL 7035, red; Official designation: PratiKa socket - screw - angled - 16A - 3P + E - 380...415 V AC - wall
