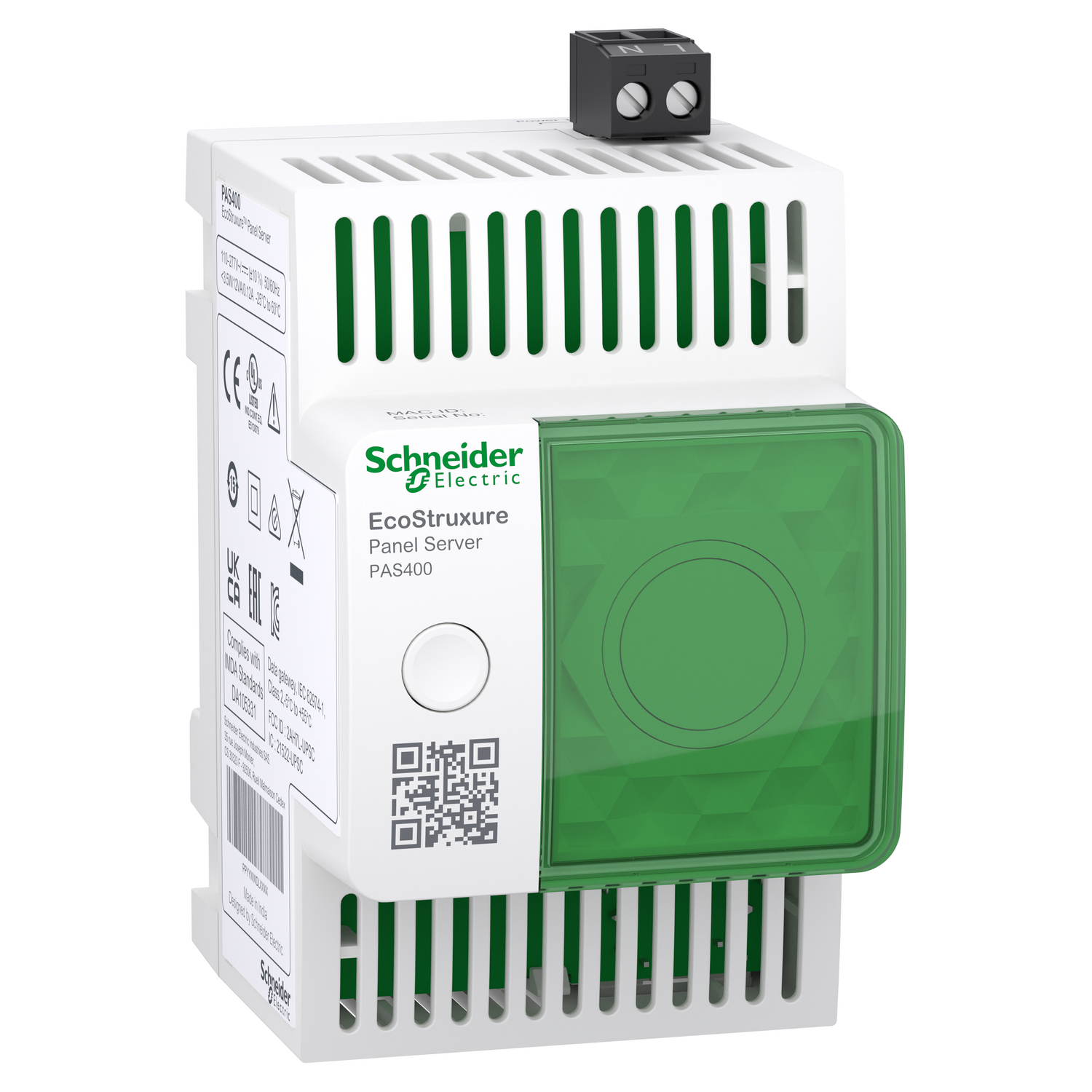

PAS400

Schneider Electric PAS400: EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. User friendly web-pages offer first-lelvel of monitoring of measurements of all the conected devices including log of all alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs. Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 54 millimetres, depth 70,2 millimetres and height 85 millimetres. From 110 to 277 VAC/DC 50-60Hz 3W/10VA Max Power Supply. -25°C to +60°C Operating temperature. -5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IM40 front face nose and IP30 on others faces. One 10/100 Base-T ethernet RJ45 connector. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, Asset Advisor and Resource Advisor.

Manufacturer

Schneider Electric

Part number

PAS400

Product family

EcoStruxure

Category

Power Supplies & Transformers

Technical details

Range: EcoStruxure; Voltage: 110-277 VAC, 110 to 277 VAC; Power: 3W; Frequency: 50-60Hz; Ingress protection: IP20, IP30; Temperature: -25°C, 60°C; Official designation: EcoStruxure Panel Server - entry wireless, concentrator 110-277 VAC/DC
