NSYTVR8

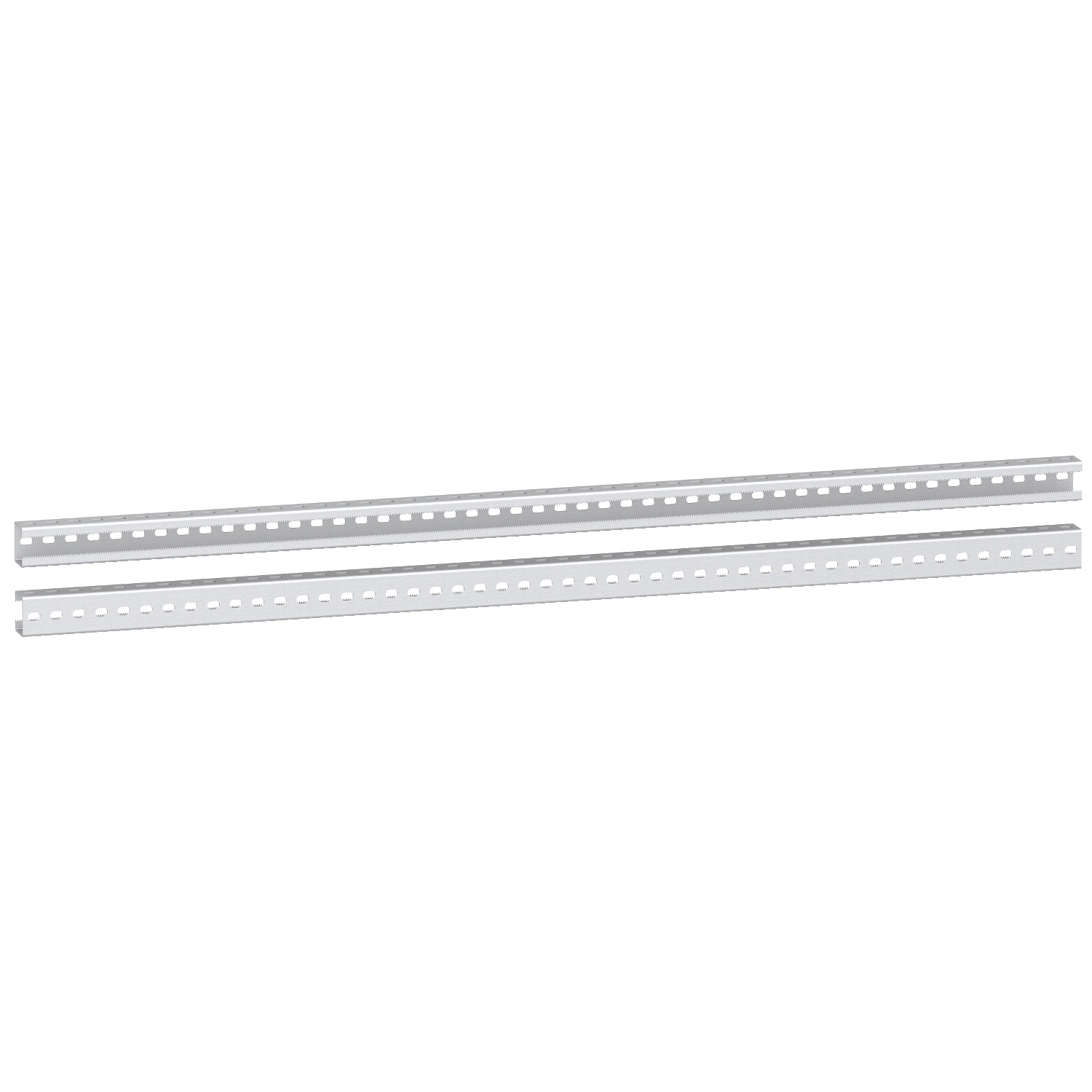

Schneider Electric NSYTVR8: 2mm thick steel technical upright for PanelSeT SD enclosures The width is 45mm The nominal height is 800mm and real height is 675mm The depth is 34mm The uprights are used for mounting chassis and fixing wiring accessories Mounting is adjustable in depth every 25mm with caged nuts and adjustable in height every 2,5mm with quarter-turn nuts Cut-out dimension is 13 x 11mm Anti-corrosion protection is ensured by zinc coating The product is made of 1 x 2 uprights.

Manufacturer

Schneider Electric

Part number

NSYTVR8

Product family

PanelSeT / Spacial

Category

Enclosures & Accessories

Technical details

Range: PanelSeT / Spacial; Dimensions: 13 x 11mm; Published sizes: 800mm, 2mm, 45mm, 675mm, 34mm, 25mm; Pack / set: Supply: 2; Official designation: Vertical uprights height 800mm. zinc-coated steel. Supply: 2 standard uprights.

Dimensions

13 x 11
