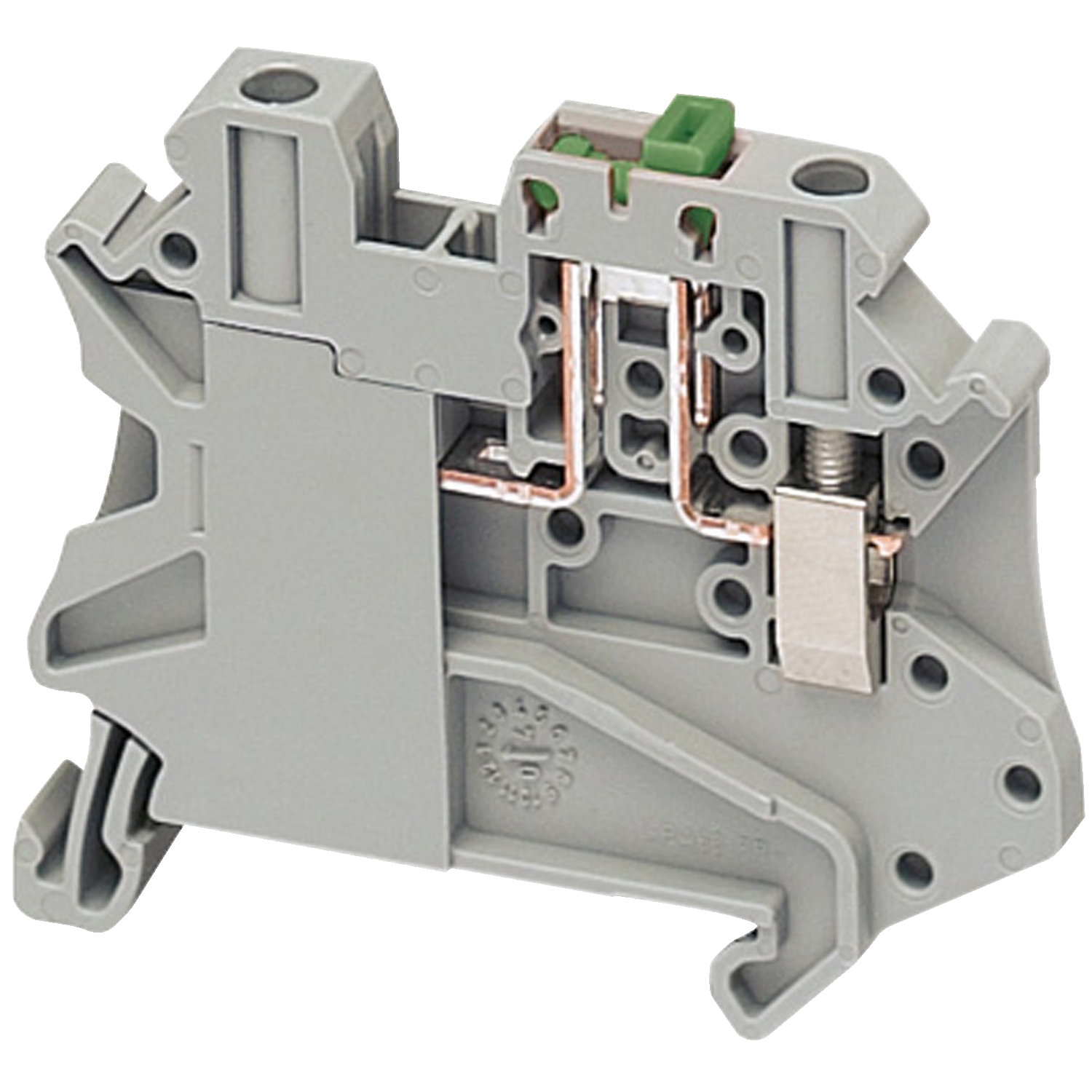

NSYTRV42STAR

Schneider Electric NSYTRV42STAR: Linergy TR is terminal block for Blade Disconnect type. It belongs to linergy blade Disconnect terminal block with 4 mm² nominal cross section. The rated operational voltage is 500V conforming to CSA/UL and 600V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1 and 26A conforming to CSA and UL. It has orange surface treatment with test points. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA). It is compliant with Green Premium (RoHS/REACH).
