NSYSPS4100SD

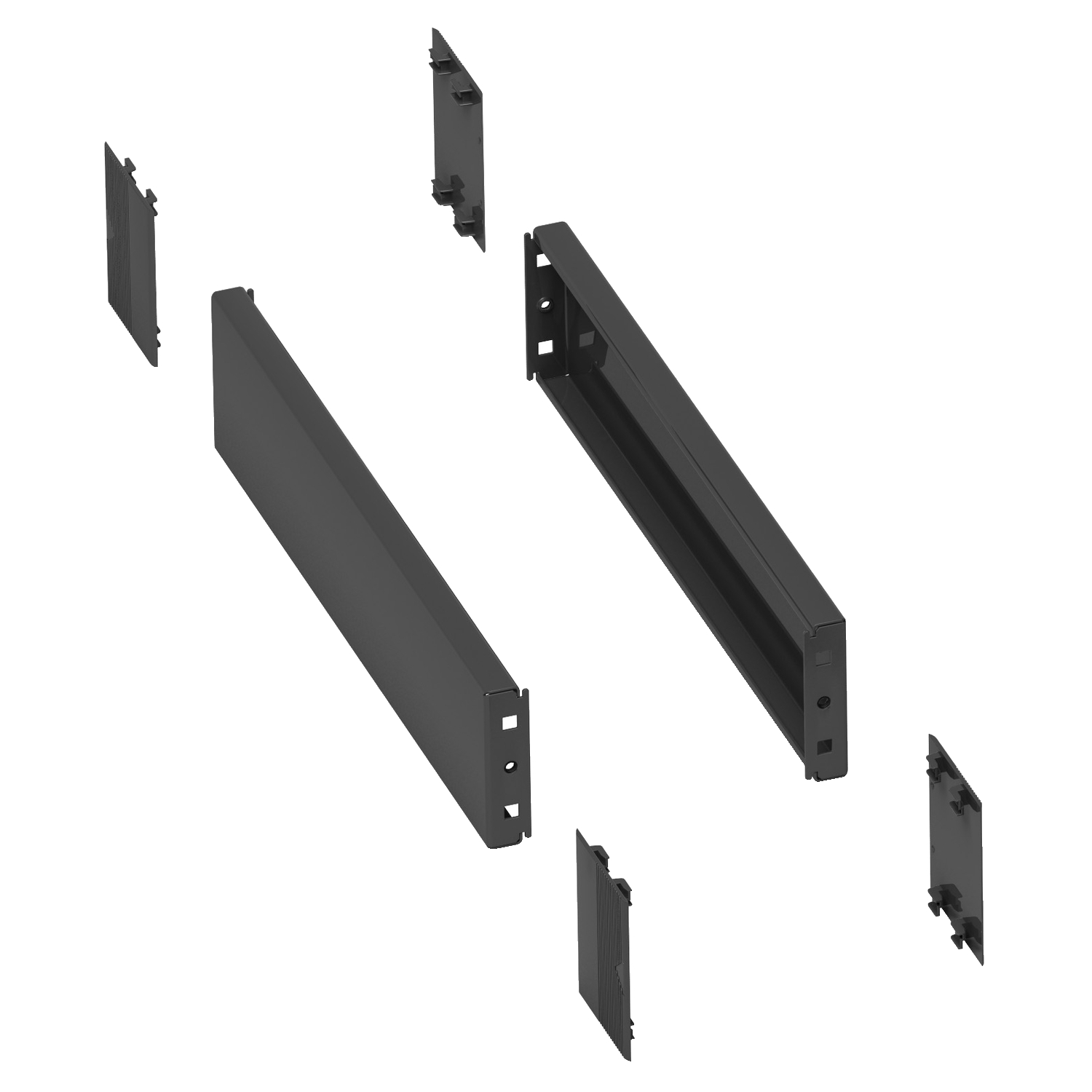

Schneider Electric NSYSPS4100SD: Plinth side panel to be used with PanelSeT SD, PanelSeT S3D and PanelSeT CRN enclosures The plinth side panel is to be used in multi-purpose applications The nominal width is 400mm The height is 100mm The depth is 400mm The kit is made of fixing elements, 4 corner covers and 2 side panels The product is made of grey Material: Steel (RAL 7022) Anti-corrosion protection is ensured by an epoxy-polyester powder coating Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10 (resistance to external mechanical impacts) This product is qualified as a green premium, with minimal use of hazardous substances.

Manufacturer

Schneider Electric

Part number

NSYSPS4100SD

Product family

Spacial S3D

Category

Enclosures & Accessories

Technical details

Range: Spacial S3D; Dimensions: 400x100mm; Published sizes: 400mm, 100mm; Ingress protection: IP 30; Impact resistance: IK 10; Colour: RAL 7022, grey, green; Material: sheet steel, polyester; Official designation: 2 side panels for plinth. 400x100mm. Folded sheet steel. RAL 7022. IP 30. IK 10.

Dimensions

400 x 100
