NSYSPFX12100H

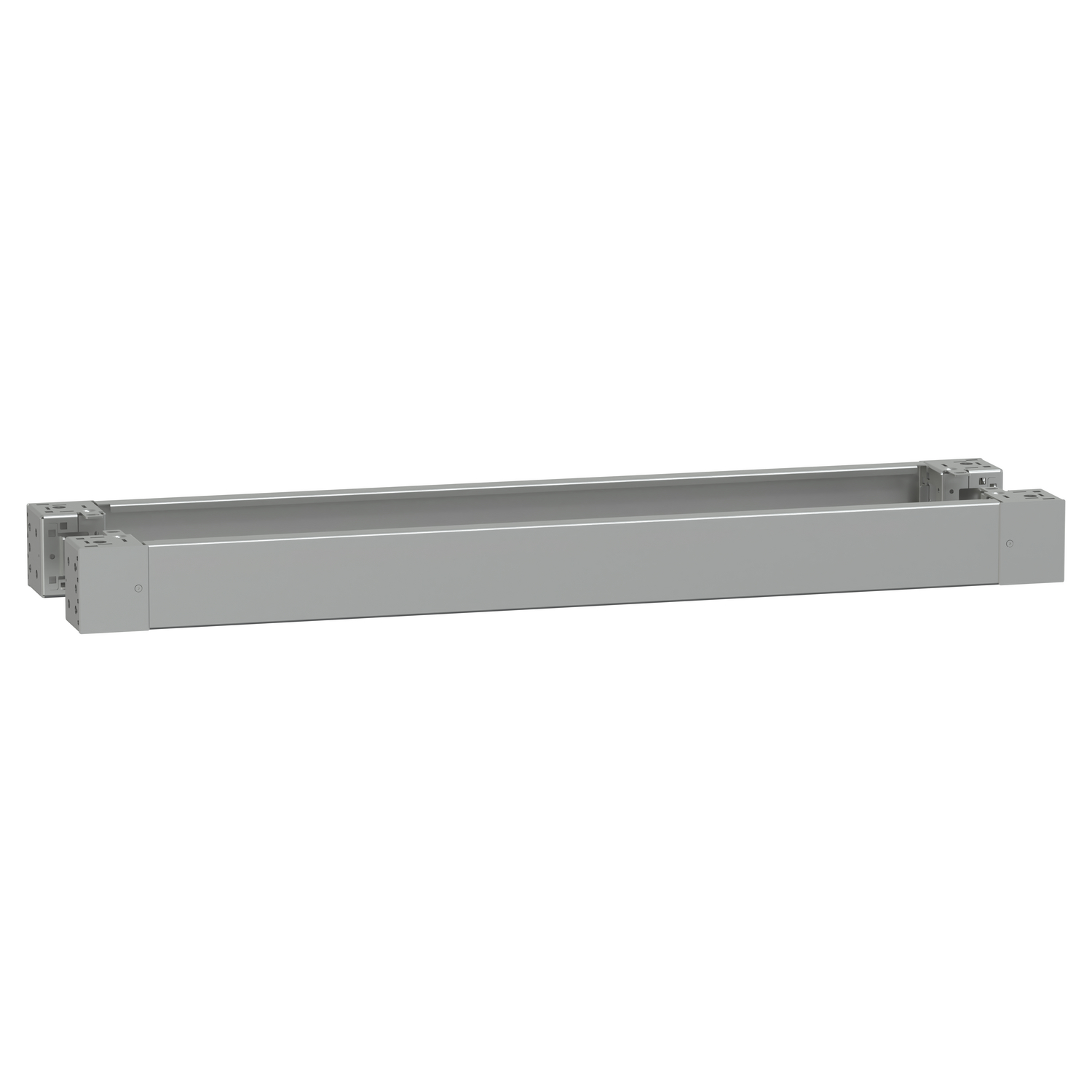

Schneider Electric NSYSPFX12100H: Plinth front to be used with PanelSeT SF, PanelSeT SM, PanelSeT SD, PanelSeT S3D, PanelSeT SFHD, PanelSeT SMX, PanelSeT SFX, PanelSeT SDX and PanelSeT CRNG enclosures The plinth front is to be used in multi-purpose applications The nominal width is 1200mm The height is 100mm The kit is made of fixing elements, 4 corner covers, 1 front panel, 1 rear panel and 4 corners The product is made of Material: Stainless steel Net weight is 6,45kg Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10 This product is qualified as a green premium, with minimal use of hazardous substances.

Manufacturer

Schneider Electric

Part number

NSYSPFX12100H

Product family

Spacial SFX

Category

Enclosures & Accessories

Technical details

Range: Spacial SFX; Published sizes: 1200mm, 100mm; Ingress protection: IP30; Impact resistance: IK10; Colour: green; Material: stainless steel; Official designation: PanelSeT - plain front panel plinth W1200 H100 stainless steel 316L

Weight

6.45 kg
