NSYSMX20850

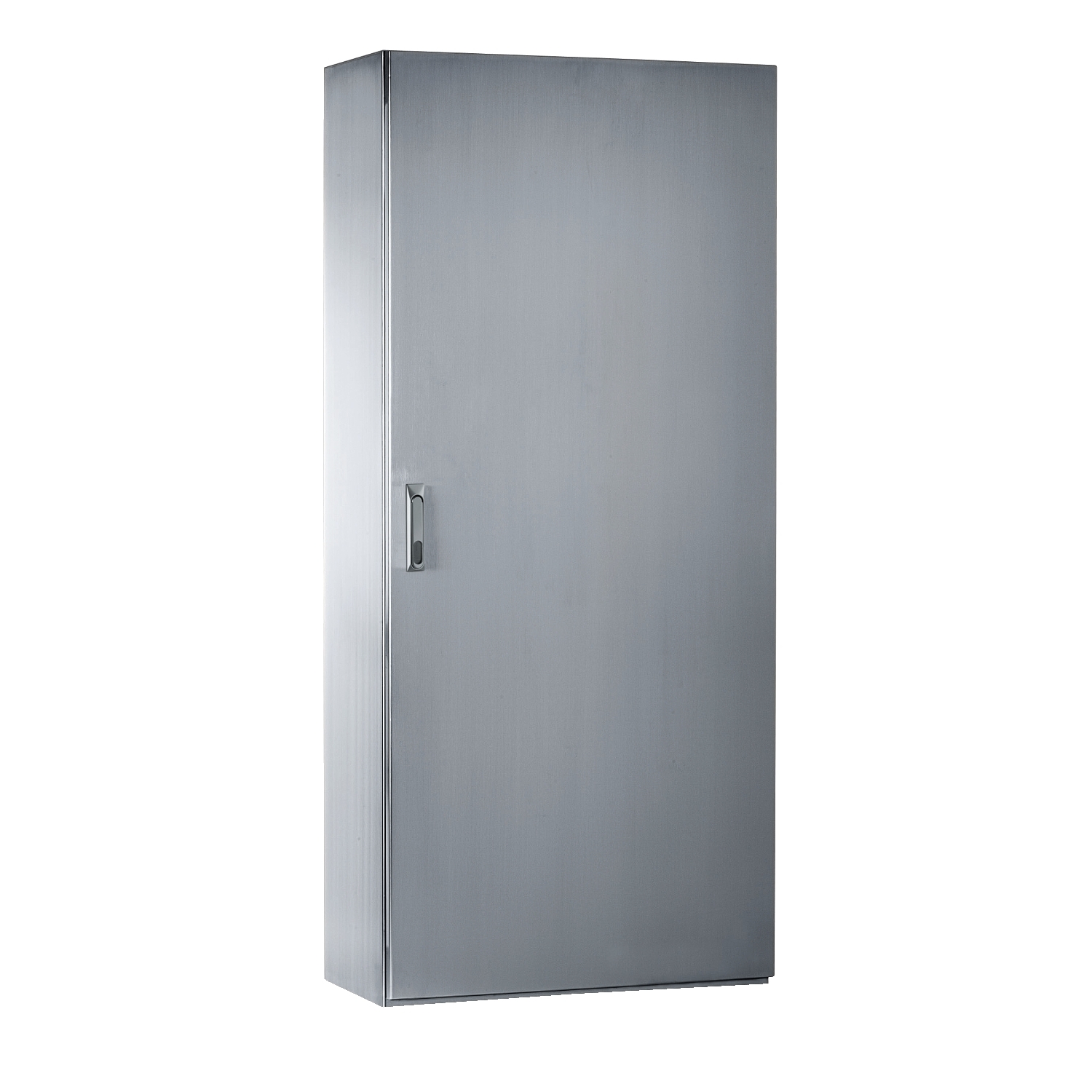

Schneider Electric NSYSMX20850: PanelSeT SMX stainless steel 304L compact floor-standing enclosure is perfect for a multi-purpose application and resistance to corrosion It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 2000mm, 800mm and 500mm respectively The enclosure is made with a Scotch-Brite® brushed surface finish The enclosure consists of a body, a cable gland plate, one plain door, four mounting plate brackets, and a locking system with handle on the door The doors can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a three-point lock with a handle with 5mm double-bar insert The doors and the mounting plate brackets can be removed for maintenance purposes The net weight of the enclosure is 119kg.

Manufacturer

Schneider Electric

Part number

NSYSMX20850

Product family

Spacial SMX

Category

Enclosures & Accessories

Technical details

Range: Spacial SMX; Published sizes: 2000mm, 800mm, 500mm, 5mm; Ingress protection: IP66; Impact resistance: IK10; Material: stainless steel; Official designation: SMX 304L stainless monobloc enclosure, H2000xW800xD500mm, Scotch Brite® finish.

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
