NSYSM2012402DP

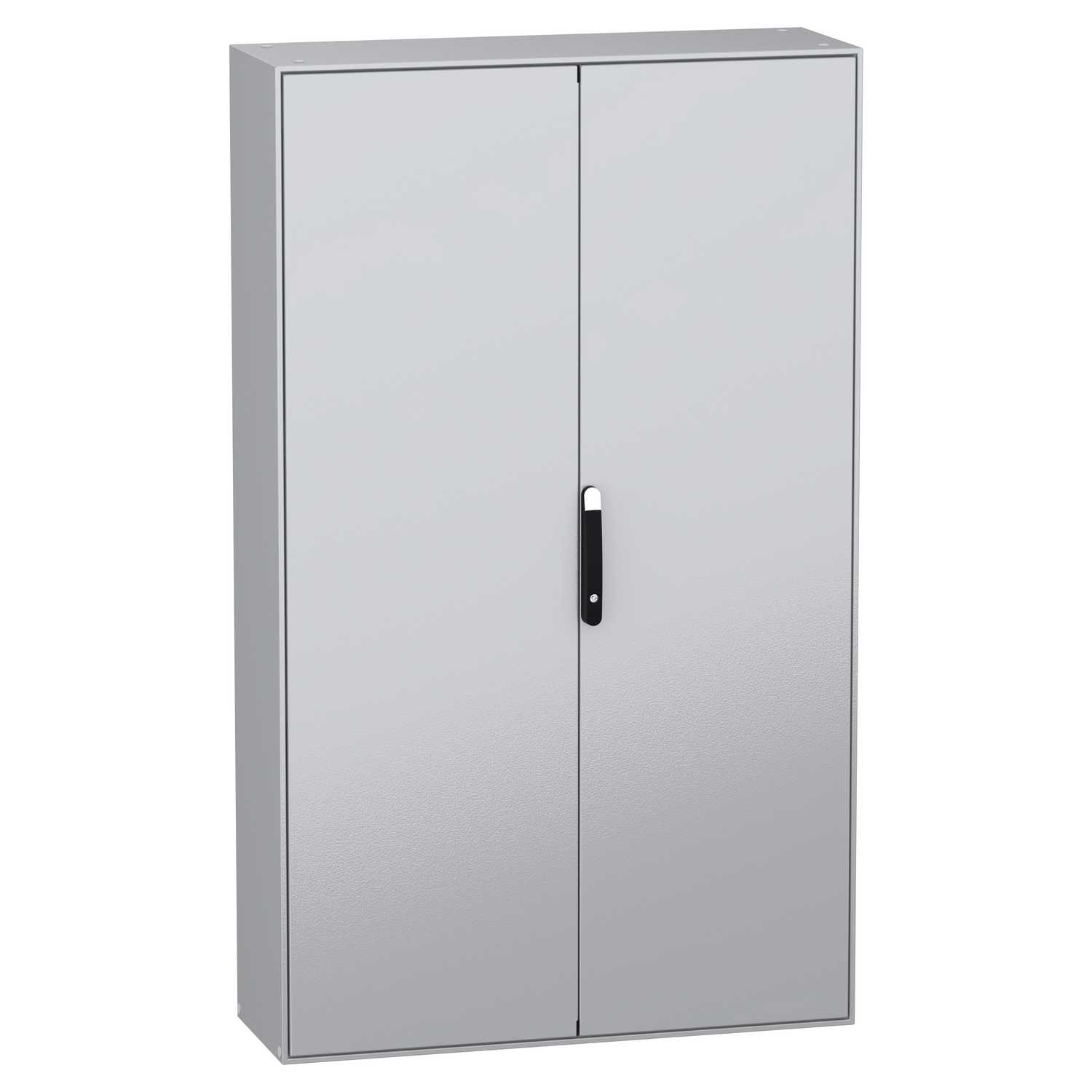

Schneider Electric NSYSM2012402DP: Spacial SM steel floor-standing enclosure for a multi-purpose application is designed for use in harsh environments It is made to withstand high impact with an IK10 rating (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529) This enclosure has a nominal height, width and depth of 2000mm, 1200mm and 400mm respectively The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) The enclosure consists of a body, two cable gland plates, two plain doors, four mounting plate brackets, a mounting plate, a blocking system on left door and a locking system with handle on the door The doors can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert The doors, mounting plate and mounting plate brackets can be removed for maintenance purposes The net weight of the enclosure is 168kg The mounting plate is made of galvanised steel The product is certified by BV, DNV and UL.
