NSYSM16630P

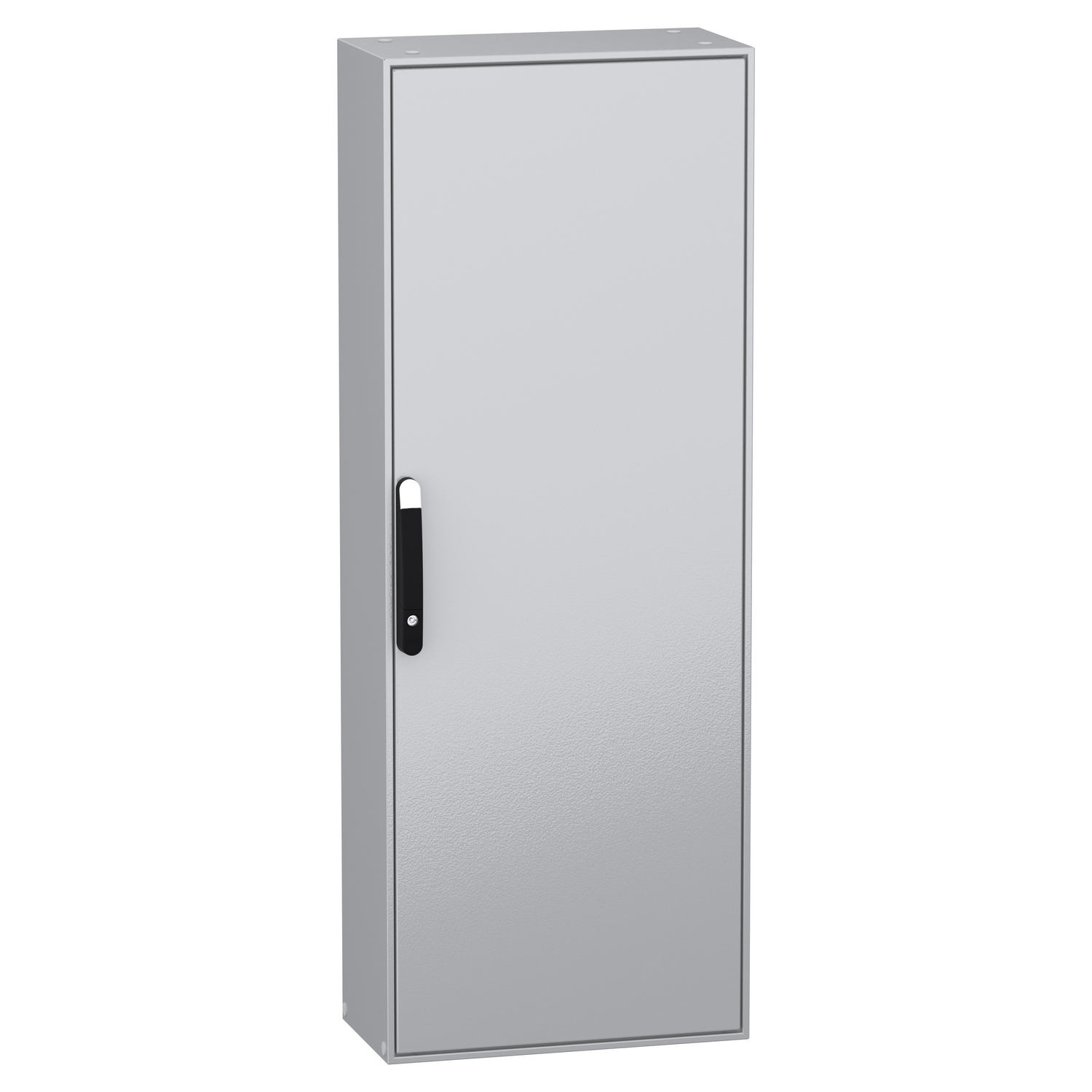

Schneider Electric NSYSM16630P: PanelSeT SM is a multi-purpose low-carbon steel compact monobloc floor-standing enclosure designed for use in harsh environments. It has a nominal height, width and depth of 1600mm, 600mm and 300mm respectively. The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It consists of one body, one plain door, one cable gland plate with one entry, one plain mounting plate and four mounting plate brackets. The door can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5mm double-bar insert. The door, the mounting plate and the mounting plate brackets can be removed for maintenance purposes. It is certified by BV and UL and marine certified by DNV. This enclosure has IP55 ingress protection rating against dust and water and IK10 impact protectoin rating. The mounting plate is made of galvanised steel.

Manufacturer

Schneider Electric

Part number

NSYSM16630P

Product family

PanelSeT SM

Category

Enclosures & Accessories

Technical details

Range: PanelSeT SM; Dimensions: 1600x600x300 mm; Published sizes: 1600mm, 600mm, 300mm, 5mm; Ingress protection: IP55; Impact resistance: IK10; Colour: grey, RAL7035, black, RAL9005; Material: polyester, galvanised steel; Official designation: PanelSet SM compact enclosure with mounting plate - 1600x600x300 mm

Dimensions

1600 x 600 x 300
