NSYSFX20860

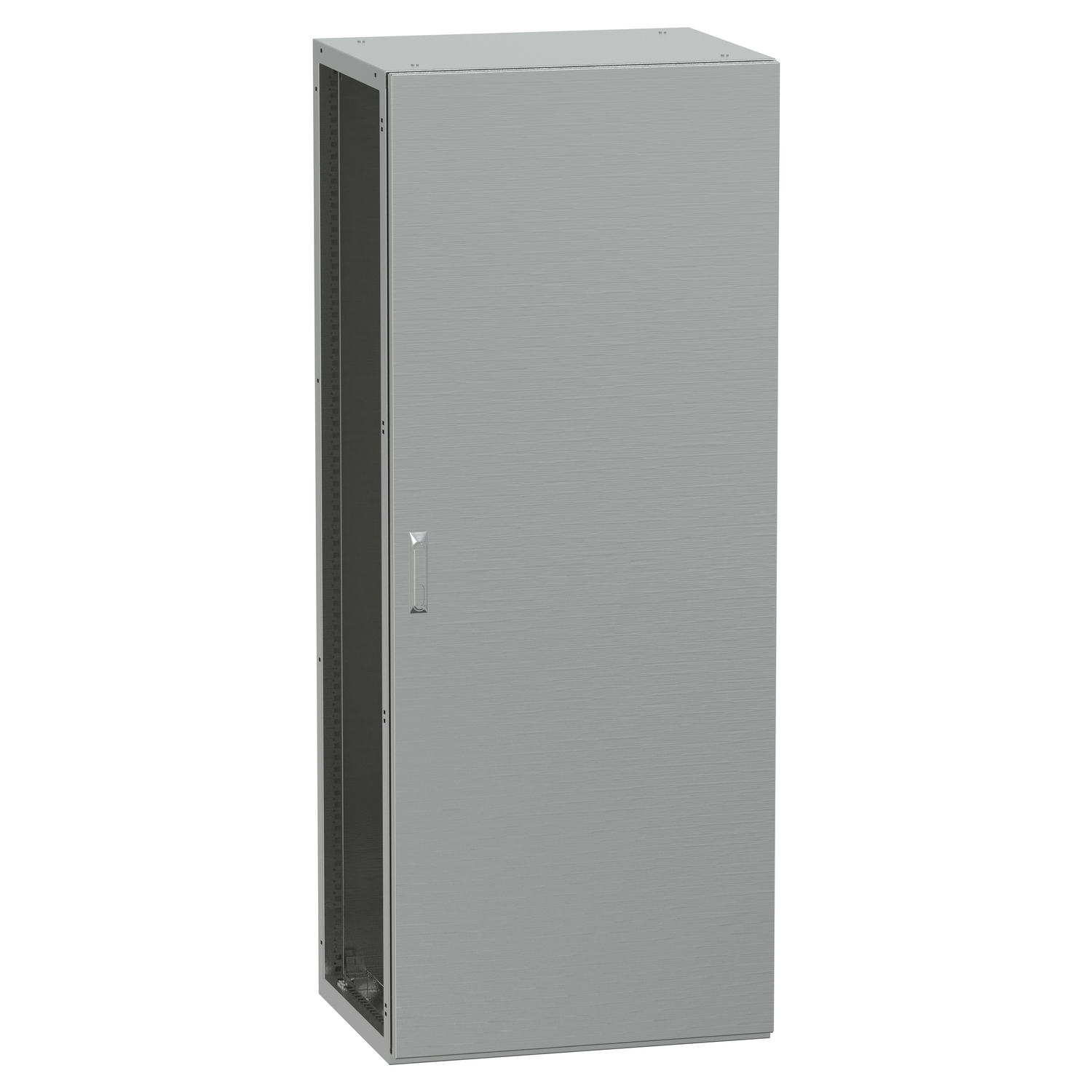

Schneider Electric NSYSFX20860: PanelSeT SFX is a versatile, multi-purpose floor-standing enclosure made of stainless steel 304L with a Scotch-Brite® brushed surface finish for superior corrosion resistance It is designed for use in harsh environments, and can withstand high impact, dust, and water with an IK10 (IEC62262) and IP66 (IEC60529) rating respectively This enclosure has a nominal height, width and depth of 2000mm, 800mm and 600mm respectively, and is composed of a single piece structure folded and welded with a rear panel integrated It has one plain door with reinforcement frame, four mounting plate brackets, a cable gland plate, and a three-point lock with a handle with 5mm double-bar insert The door is reversible, allowing it to open up to 120° for easy access to the equipment inside It has removable parts such as the door by hinges, the mounting plate bracket by screws, and the cable gland plate by clips The net weight of the enclosure is 81kg, and it is compliant with industry standards such as IEC 62208 and NEMA 4X.
