NSYSFNHD20860

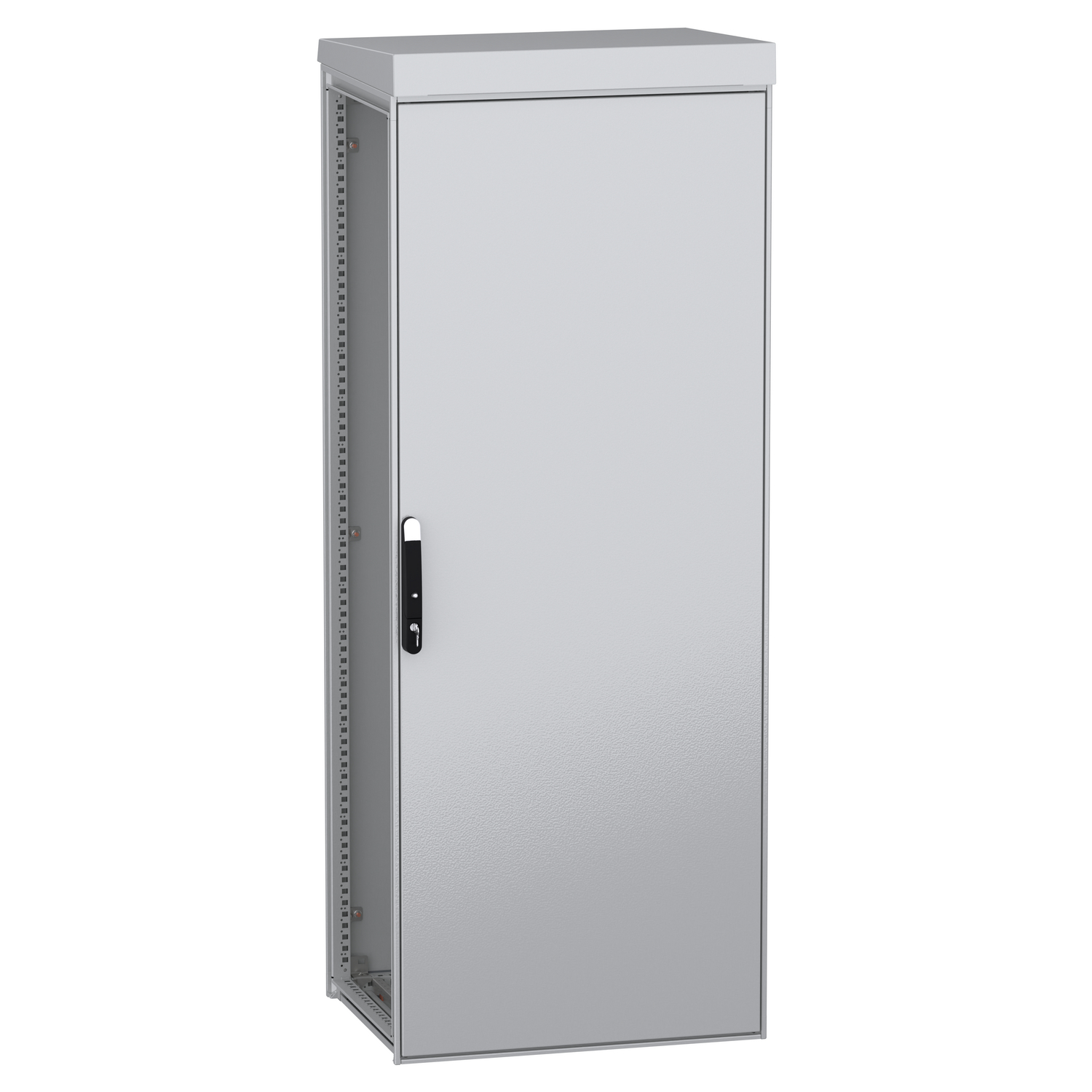

Schneider Electric NSYSFNHD20860: This PanelSeT is a floor standing modular decarbonized steel electrical enclosure that is suitable for Outdoor applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. Suitable to be installed in public areas with harsh environments thanks to its capacity to resist corrosion (up to C4H level according ISO 12944-6:2018) and UV. It has a nominal height, width, and depth of 2000 mm, 800 mm and 600 mm, respectively. It is made of coated steel with anti-corrosive paiting. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color with a black (RAL 9005) handle with keylock (1242E type) and padlock. It is composed by one plain door, one rear panel, one special roof, one aluminium cable gland plate, two sliding rails and one set of quick-fixing mounting plate brackets. The enclosure has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating.

Manufacturer

Schneider Electric

Part number

NSYSFNHD20860

Product family

PanelSeT SFN

Category

Enclosures & Accessories

Technical details

Range: PanelSeT SFN; Dimensions: 2000x800x600mm; Published sizes: 2000 mm, 800 mm, 600 mm; Ingress protection: IP55; Impact resistance: IK10; Colour: RAL7035, grey, black, RAL 9005; Material: polyester, aluminium; Official designation: Outdoor floor standing modular electrical enclosure;PanelSeT SFN;decarbonized steel;2000x800x600mm;IP55;RAL7035

Dimensions

2000 x 800 x 600
