NSYSDC62

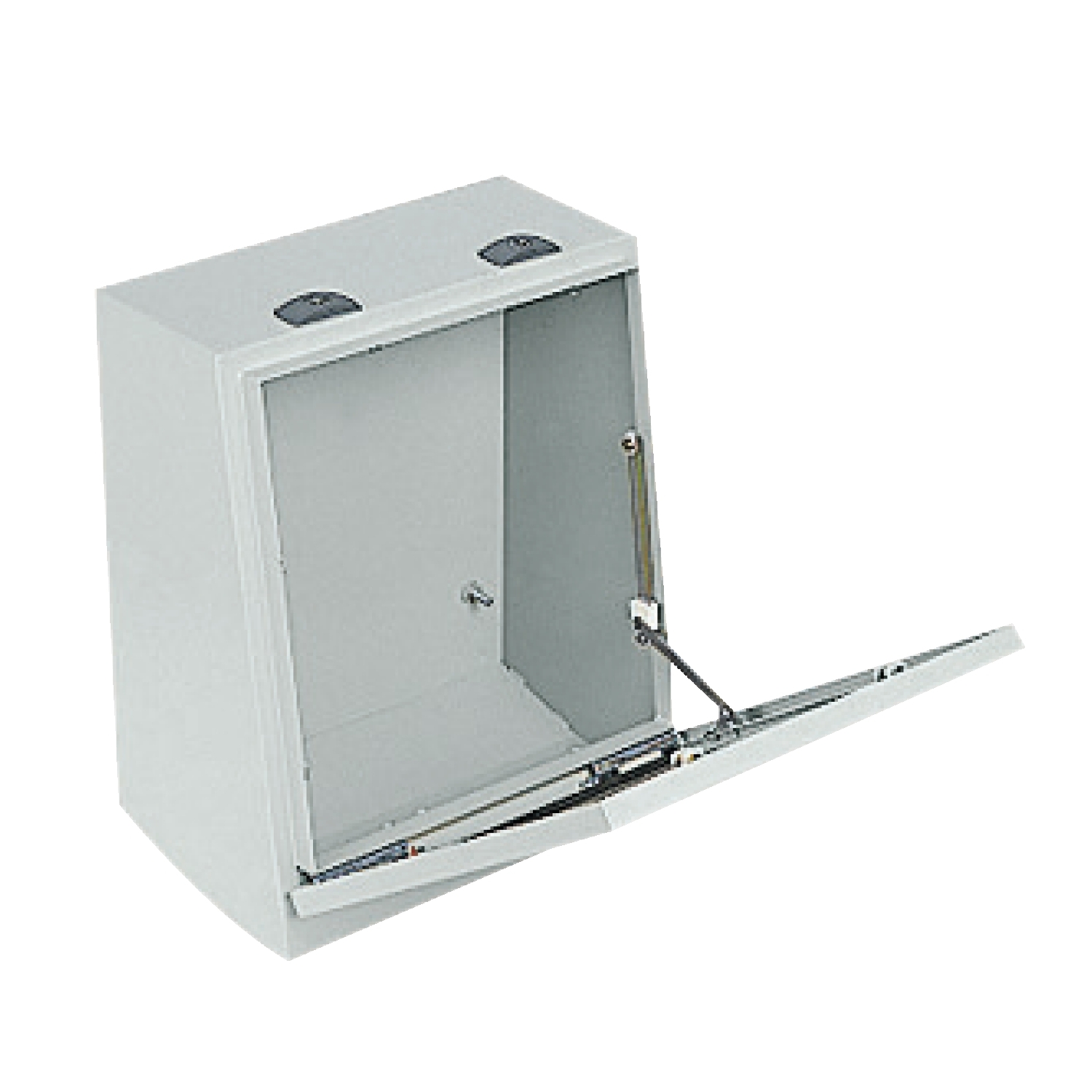

Schneider Electric NSYSDC62: Hinged modular console cover made from 1,5mm thick grey sheet steel (RAL 7035) for PanelSeT SD The console is equipped with a pneumatic opening stay with 75 ° opening angle The width is 600mm The height is 484mm The nominal depth is 200mm and real depth is 262mm Fixed on top of control desk Locking by 2 points lock, 3mm double-bar Anti-corrosion protection is ensured by epoxy-polyester powder coating The kit is made up of 1 door, 1 body, 1 retainer and 2 locks Ingress protection rating is IP55 conforming to IEC 60529 Mechanical protection rating is IK10 conforming to IEC 62262 This product is qualified as a green premium, with minimal use of hazardous substances.

Manufacturer

Schneider Electric

Part number

NSYSDC62

Product family

PanelSeT / Spacial

Category

Enclosures & Accessories

Technical details

Range: PanelSeT / Spacial; Published sizes: 1,5mm, 600mm, 484mm, 200mm, 262mm, 3mm; Ingress protection: IP55; Impact resistance: IK10; Colour: grey, RAL 7035, green; Material: sheet steel, polyester; Official designation: Modular console for PanelSeT SD Compact control desk with rear panel - W600xD200
