NSYSD12

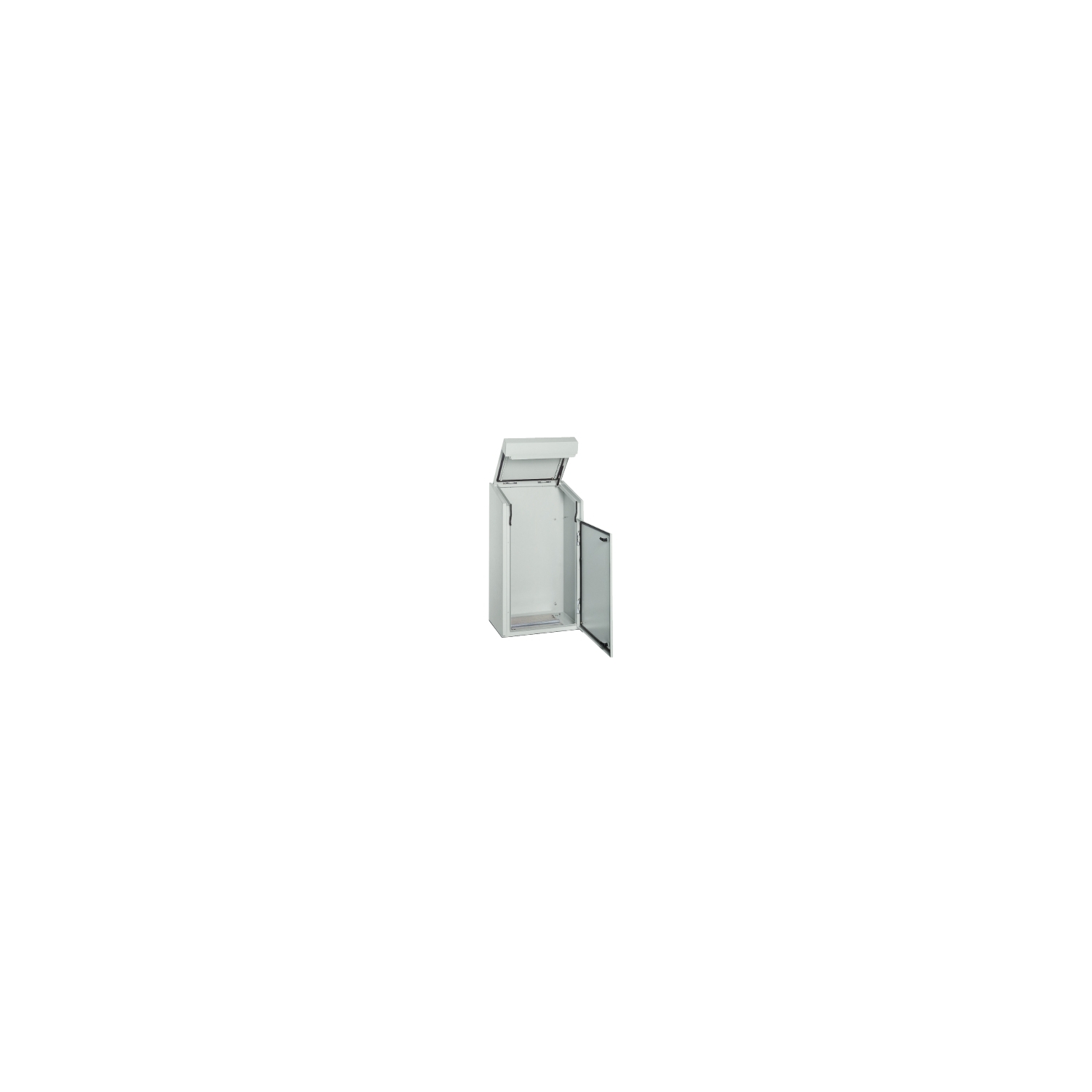

Schneider Electric NSYSD12: PanelSeT SD floor-standing monobloc control desk 1000mm (height), 1200mm (width) and 466mm (depth) Single piece structure folded and welded body made from 1,5mm steel The enclosure is made up of 1 structure, 2 locks for door, 4 adjustment rails, 1 cable gland plate, 2 pneumatic stays for desk lid and 2 doors Easy removable and reversible door opening to 120° Locking by 2 points lock, 3mm double-bar Mounting plate is not included One entry cable gland plate, with polyurethane gasket Anti-corrosion protection is ensured by an epoxy-polyester powder coating Color of product is grey (RAL-7035) Ingress protection rating IP55 conforming to IEC 60530 Mechanical protection rating IK10 conforming to IEC 62263 This product is qualified as a green premium, with minimal use of hazardous substances.

Manufacturer

Schneider Electric

Part number

NSYSD12

Product family

PanelSeT / Spacial

Category

Enclosures & Accessories

Technical details

Range: PanelSeT / Spacial; Published sizes: 1000mm, 1200mm, 466mm, 1,5mm, 3mm; Ingress protection: IP55; Impact resistance: IK10; Colour: grey, green; Material: polyester; Official designation: PanelSet SD Compact control desk w/o mounting plate - H1000xW1200xD466 - IP55
