NSYS3X5420T

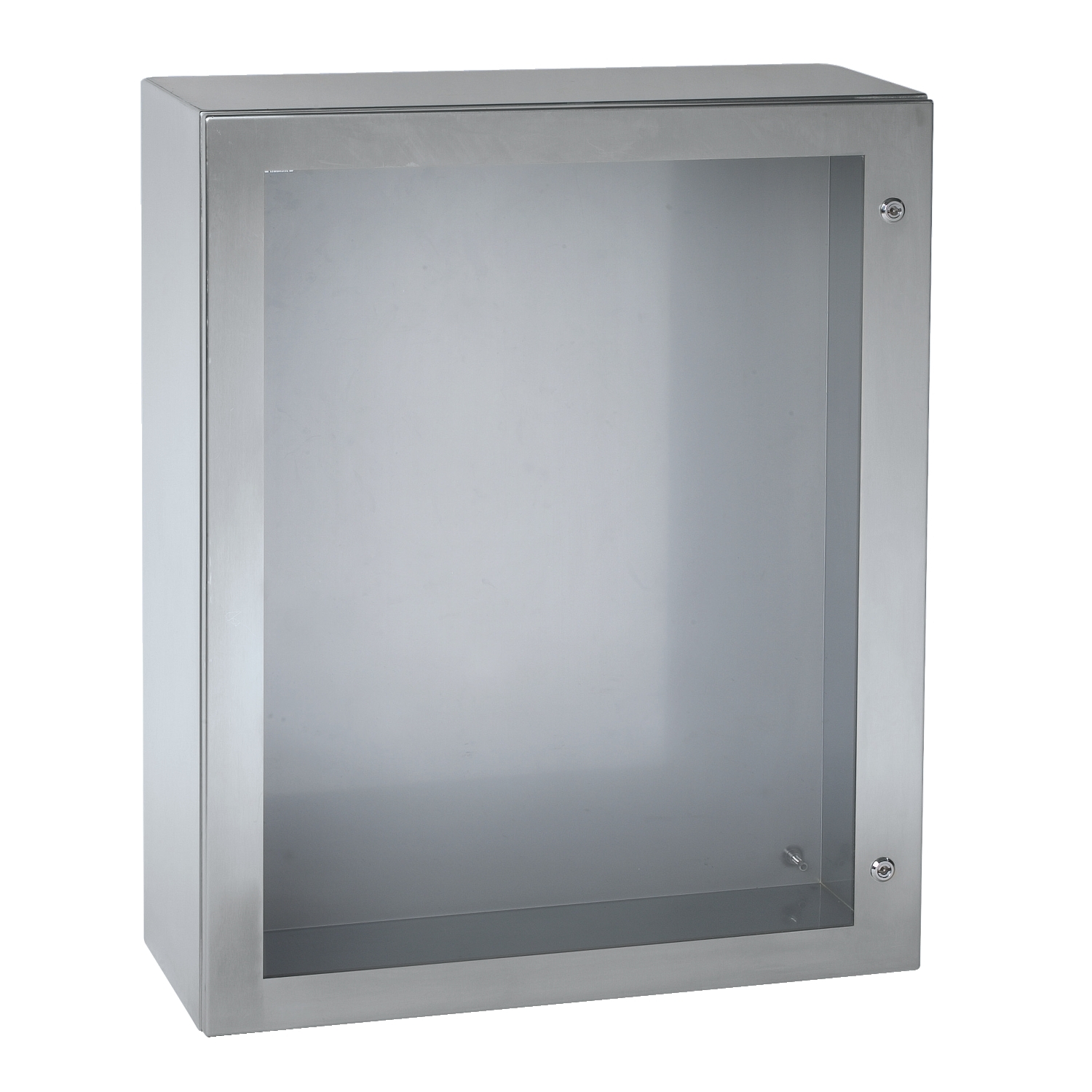

Schneider Electric NSYS3X5420T: PanelSet S3X stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion It is designed for use in harsh environments, it can withstand high impact due its IK08 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 500mm, 400mm and 200mm respectively The enclosure is made with Scotch-Brite® brushed surface finish The enclosure consists of a body, a glazed door and one lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a two lock points lock with a 3mm double-bar insert The door is made of Securit glass and can be removed for maintenance purposes The net weight of the enclosure is 7,842kg.

Manufacturer

Schneider Electric

Part number

NSYS3X5420T

Product family

PanelSeT / Spacial

Category

Enclosures & Accessories

Technical details

Range: PanelSeT / Spacial; Dimensions: 500x400x200mm; Published sizes: 500mm, 400mm, 200mm, 3mm; Ingress protection: IP66; Impact resistance: IK08; Material: stainless steel; Official designation: Wall mounted enclosure, PanelSet S3X, stainless steel 304L, glazed door, 500x400x200mm, IP66

Dimensions

500 x 400 x 200
