NSYS3X302515H

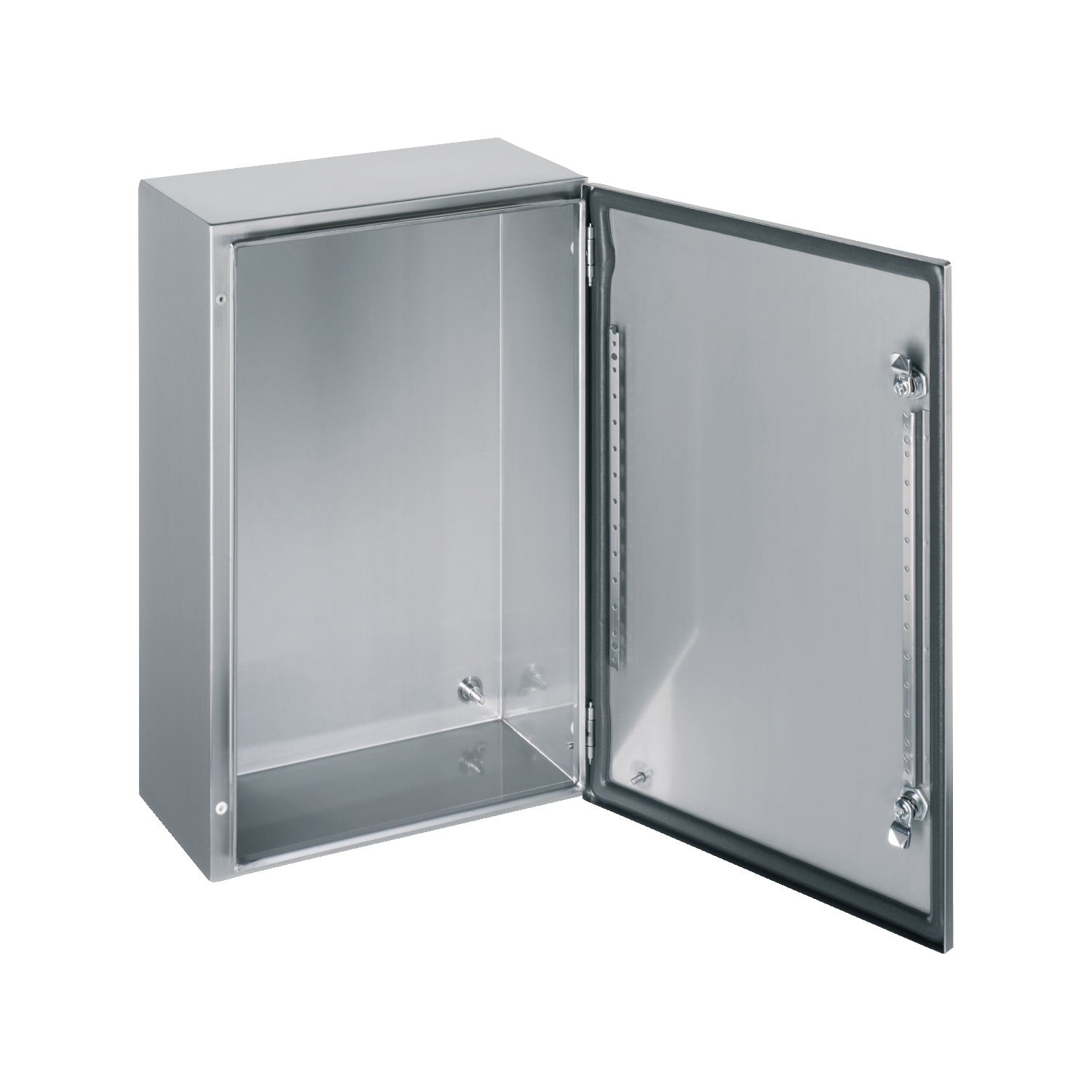

Schneider Electric NSYS3X302515H: PanelSet S3X is a stainless steel 316L wall-mounting enclosure, designed for multi-purpose applications and resistant to corrosion It is certified by CAN/CSA 22 and UL 508 type A, making it suitable for use in harsh environments It is IK10 (IEC 62262) rated and has an IP66 (IEC 60529) rating, providing high resistance to dust and water The enclosure has a nominal height, width and depth of 300mm, 250mm and 150mm respectively It has a Scotch-Brite® brushed surface finish, and consists of a body, one plain door and one lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a 3mm double-bar lock for added security The door can be removed for maintenance purposes The net weight of the enclosure is 3,574kg.

Manufacturer

Schneider Electric

Part number

NSYS3X302515H

Product family

PanelSeT / Spacial

Category

Enclosures & Accessories

Technical details

Range: PanelSeT / Spacial; Dimensions: 300x250x150mm; Published sizes: 300mm, 250mm, 150mm, 3mm; Ingress protection: IP66; Impact resistance: IK10; Material: stainless steel; Official designation: Wall mounted enclosure, PanelSet S3X, stainless steel 316L, plain door, 300x250x150mm, IP66

Dimensions

300 x 250 x 150
