NSYS3HF10830P

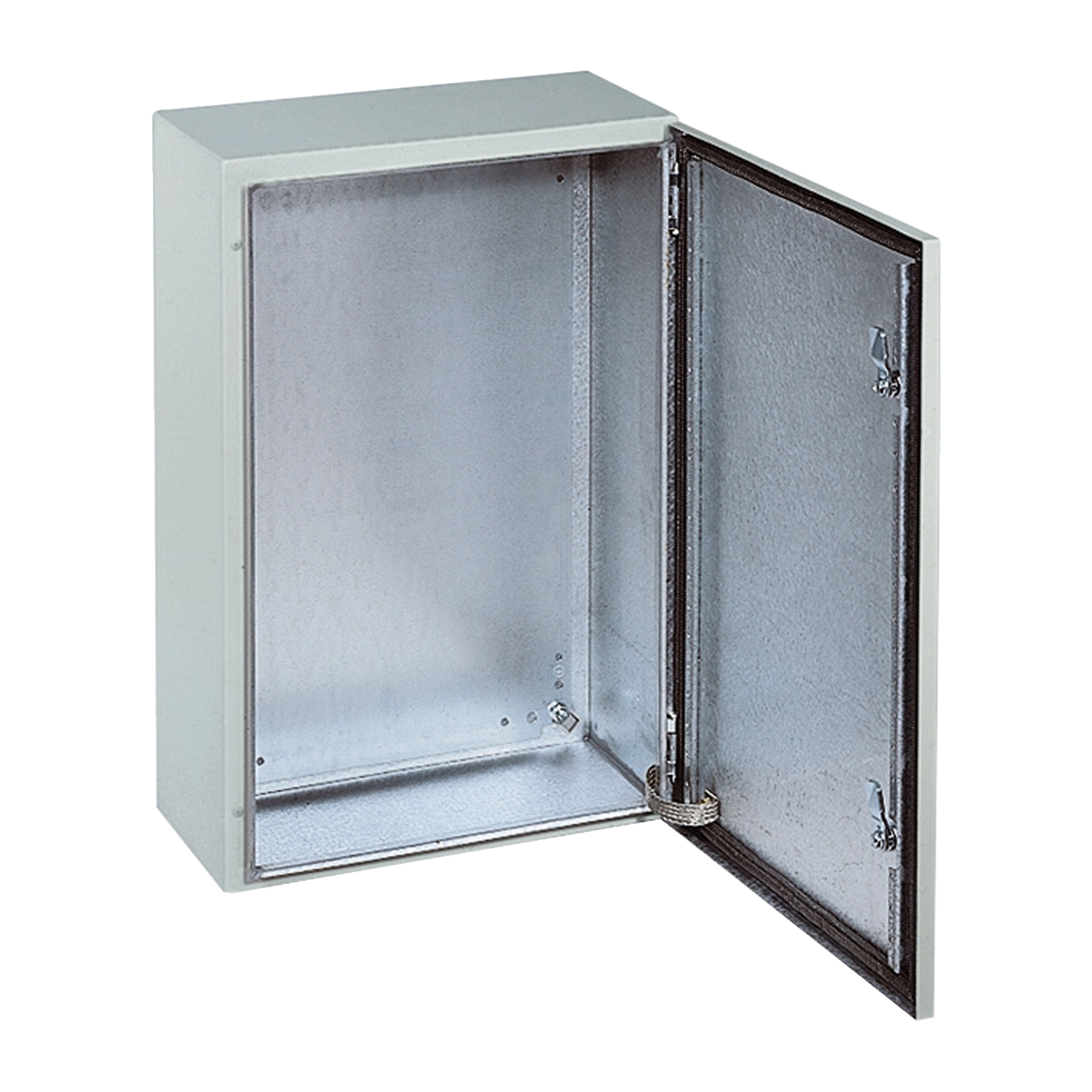

Schneider Electric NSYS3HF10830P: This S3HF is an industrial enclosure designed for wall-mounting and made of aluzinc The body is made of aluzinc that provides corrosion resistance The doors are reversible up to 120° The enclosure has nominal dimensions of 1000mm height, 800mm width, and 300mm depth, with a canopy height of 48mm The doors are secured with a three-point lock and have a 3mm double-bar locking system The enclosure is colored grey (RAL 7035) and has an epoxy-polyester powder surface structured finish The enclosure comes with one body, one door with lock, and one mounting plate The net weight of the enclosure is 51,7kg The enclosure can be fixed on a wall by means of optional stainless-steel wall fixing lugs or on a post by means of an optional HD post fixing device This S3HF is rated IK10 (IEC 62262) for impact resistance and IP55 (IEC 60529) for dust and water protection It conforms to IEC 60529 and has EMC immunity The enclosure is also certified by BV, LR, UL, GL, DNV, and cUL.
