MR-JN-10A1

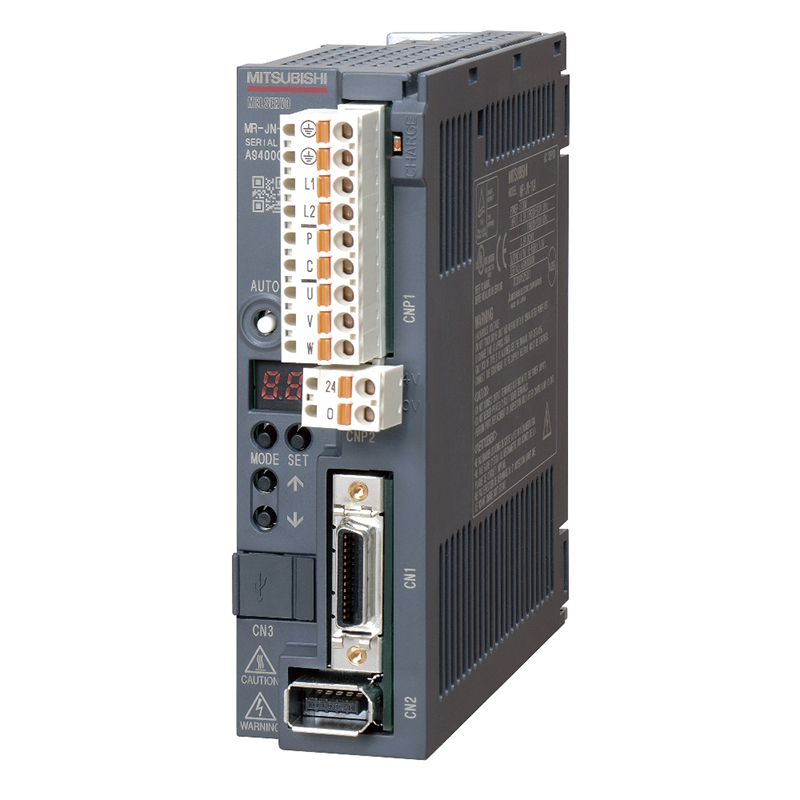

Mitsubishi Electric MR-JN-10A1 is an AC servo amplifier in the MELSERVO-JN series. Key characteristics include command interface general-purpose interface, voltage class 100V, rated capacity 0.1 kW, rated output voltage three-phase AC170V, rated output current 1.1 A, main-circuit supply single-phase AC100 to 120V/50, 60Hz, main-circuit rated current 3.0 A.

Manufacturer

Mitsubishi Electric

Part number

MR-JN-10A1

Product family

MELSERVO-JN series

Category

Servo Drives & Amplifiers

Technical details

Series: MELSERVO-JN series; Model: MR-JN-10A1; Command interface: general-purpose interface; Voltage class: 100V; Rated capacity: 0.1 kW; Rated output voltage: three-phase AC170V; Rated output current: 1.1 A; Main-circuit supply: single-phase AC100 to 120V/50, 60Hz; Main-circuit rated current: 3.0 A; Control-circuit power: 10; Control method: sine-wave PWM and current control; Dynamic brake: built in; Protection functions: overcurrent protection, regenerative overvoltage protection, overload protection (electronic thermal), servo motor overheat protection, encoder fault protection, regeneration fault protection, undervoltage and instantaneous power-failure protection, overspeed protection, excessive error protection; Enclosure / protection: natural cooling, open type (IP20); Operating temperature: 0 to 55 °C (non-freezing), storage: －20 to 65 °C (non-freezing); Weight: 0.6 kg

Weight

0.6 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
