MR-J4-DU55KA4-RJ

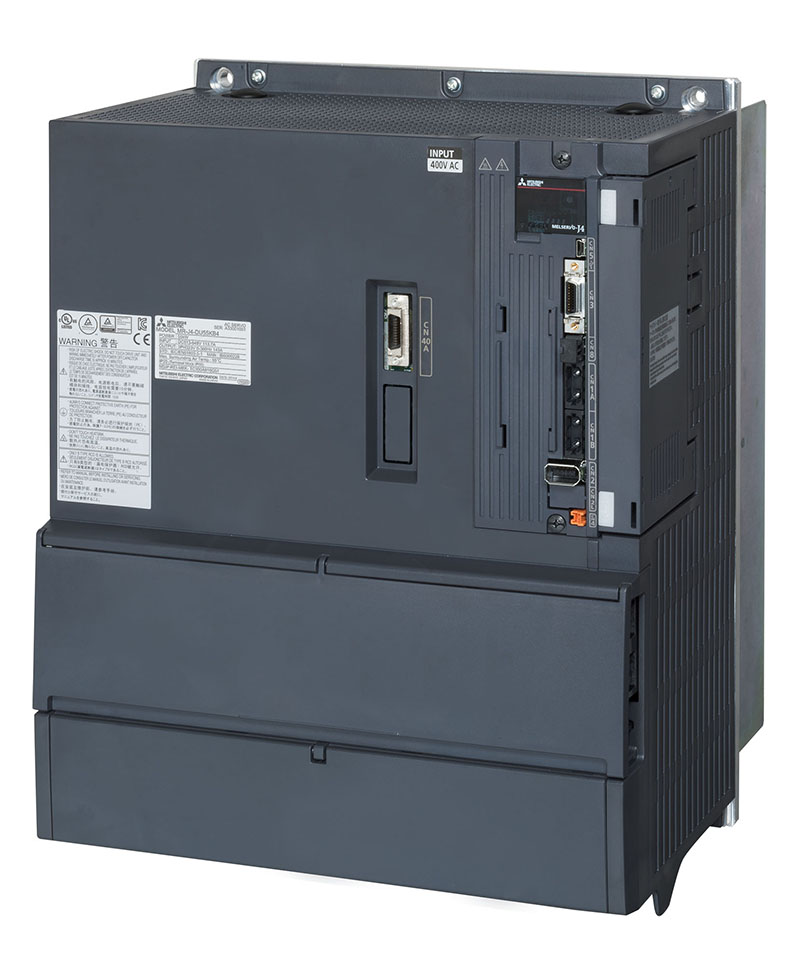

Mitsubishi Electric MR-J4-DU55KA4-RJ is an AC servo amplifier in the MELSERVO-J4 series. Key characteristics include command interface general-purpose interface, voltage class AC400 V, rated capacity 55 kW, rated output voltage three-phase AC323 V, rated output current 143 A, control-circuit supply single-phase AC380 V to 480 V, 50 Hz/60 Hz, control-circuit power 45.

Manufacturer

Mitsubishi Electric

Part number

MR-J4-DU55KA4-RJ

Product family

MELSERVO-J4 series

Category

Servo Drives & Amplifiers

Technical details

Series: MELSERVO-J4 series; Model: MR-J4-DU55KA4-RJ; Command interface: general-purpose interface; Voltage class: AC400 V; Rated capacity: 55 kW; Rated output voltage: three-phase AC323 V; Rated output current: 143 A; Control-circuit supply: single-phase AC380 V to 480 V, 50 Hz/60 Hz; Control-circuit power: 45; Control method: sine-wave PWM and current control; Enclosure / protection: forced-air cooling, open type (IP20); Operating temperature: 0 °C to 55 °C (non-freezing); Weight: 21 kg

Weight

21 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
