M40E-032203RB0

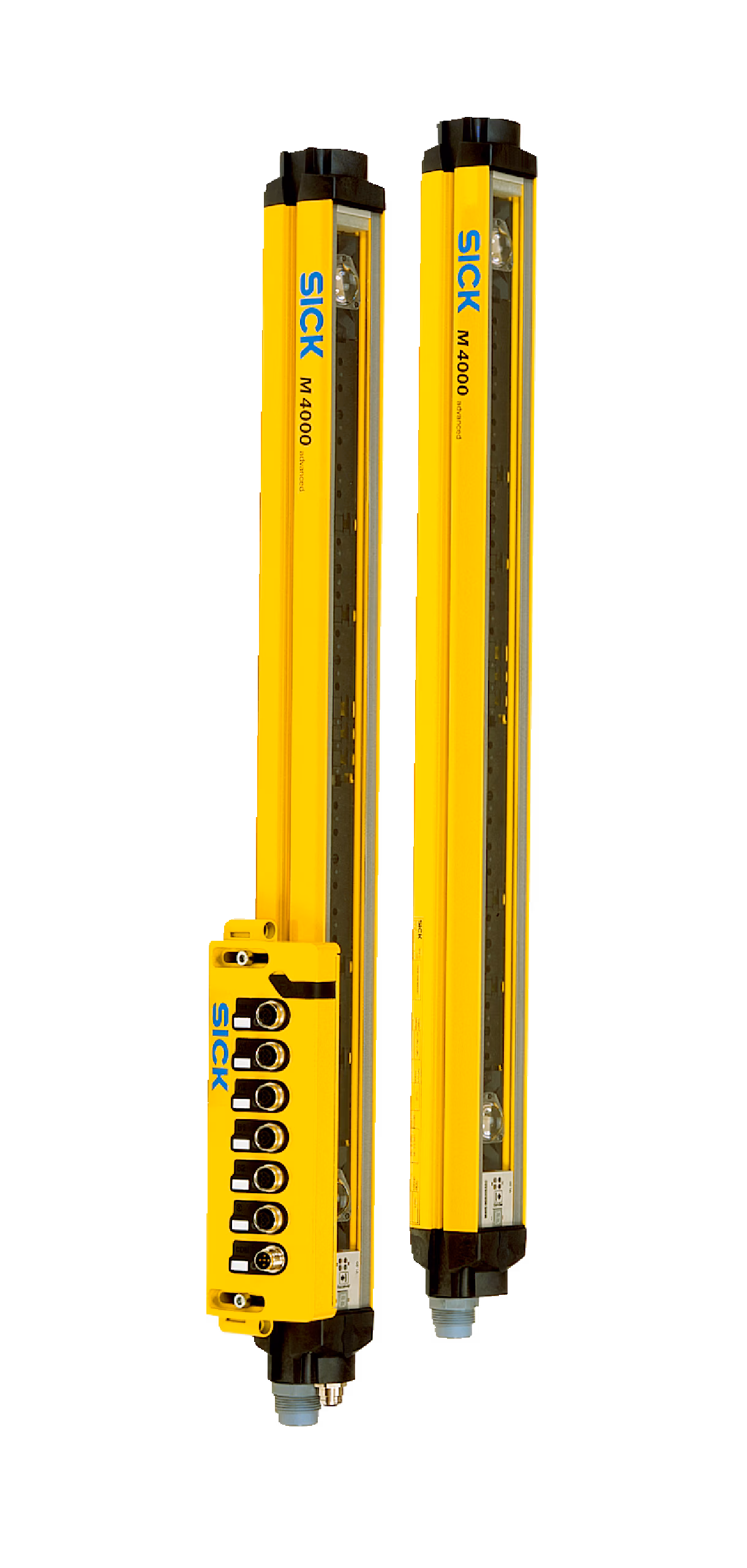

SICK M40E-032203RB0 / M40E-032203RB0 is an archive in the M4000 Advanced family. Safety light-beam sensors; System part: Receiver; Scanning range: 70 m; Number of beams: 3; Beam separation: 220 mm; Connection type: Hirschmann male connector M26, 12-pin; Extension connection: Female connector M12, 5-pin; Integrated laser alignment aid: no; End cap with integrated LED: no.

Manufacturer

Sick

Part number

M40E-032203RB0

Product family

M4000 Advanced

Category

Archive

Technical details

Number of beams: 3; Beam separation: 220 mm; Supply voltage VS: 24 V DC (19.2 V DC... 28.8 V DC); Safe SICK device communication via EFI: ✔; Response time: 10 ms; Dimensions: See dimensional drawing; Enclosure rating: IP65 (EN 60529); Ambient operating temperature: –30 °C... +55 °C; Functional principle: Sender/receiver; System part: Receiver; Scanning range: 0.5 m... 70 m, configurable; Low scanning range: 0.5 m... 20 m; Great scanning range: 9 m... 70 m; Synchronization: Optical synchronization
