HG-SNS152BJ

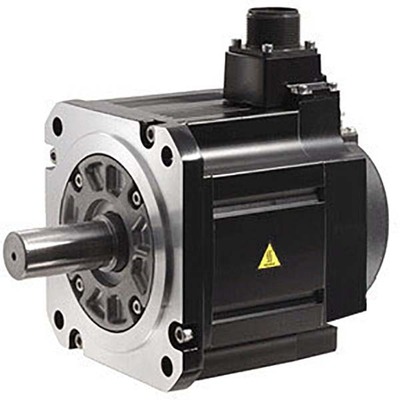

Mitsubishi Electric HG-SNS152BJ is an AC brushless rotary servo motor. Its configuration includes straight shaft + built-in electromagnetic brake + built-in absolute feedback encoder (22-bit) + oil seal. Key ratings include mitsubishi Electric (MELSERVO JET, HG-SNS series), rated output 1500 W / 1.5 kW, 22-bit (equivalent to 4194304 p/rev) feedback, rated current 9.4 A, supply voltage 200 VAC class, rated torque 7.16 Nm nominal, rated rotational speed 2000 rpm.

Manufacturer

Mitsubishi Electric

Part number

HG-SNS152BJ

Product family

MELSERVO JET - HG-SNS series

Category

Motors & Encoders

Technical details

Main function: AC servo motor; Product series / family name: Industrial automation > Drive products > Servo systems > AC Servo motors > MELSERVO JET series; Sub-range name: MELSERVO JET - HG-SNS series; Functions: AC brushless rotary servo motor; Design: straight shaft, built-in electromagnetic brake, built-in absolute feedback encoder (22-bit), oil seal, Totally Enclosed Natural Cooling (TENC) structure, medium inertia / medium power capacity, natural cooling; Supply voltage (AC): 200 VAC class; Rated current: 9.4 A, 29 A (max. current); Rated active power (kW): 1500 W / 1.5 kW; Rotational speed: 2000 rpm, 3000 rpm (maximum); Torque: 7.16 Nm nominal; Maximum torque: 21.5 Nm; Moment of inertia: 0.0016 kg·m² (16 kg.cm²); Mounting mode: 130 × 130 mm flange mounting; Resolution: 22-bit (equivalent to 4194304 p/rev) feedback; Degree of protection: IP67; Dimensions: H177.5 mm x W130 mm x D236 mm; Net Height (mm): 177.5 mm; Net Width (mm): 130 mm; Net Depth (mm): 236 mm; Ambient air temperature for operation: 0...+40 °C; Ambient air temperature for storage: -15 °C...+70 °C; Maximum radial load: 980 N; Maximum axial load: 490 N; Manufacturer product status: Commercialized; Manufacturer description: JET SRV MTR 1.5KW 2000 rpm Oil BRK; Compliant with standard(s): CE marking, TUV Rheinland, UKCA, cURus, EN50581, EN60034-1, EN61800-3, UL, CSA

Dimensions

H177.5 mm × W130 mm × D236 mm
