GT1150HS-QLBD

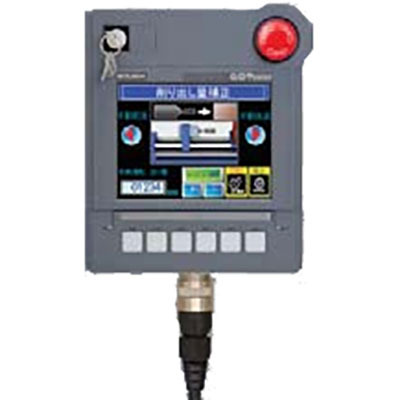

Mitsubishi Electric GT1150HS-QLBD is a GOT operator terminal in the GOT1000. Key characteristics include display device STN monochrome (white/black) LCD, screen size 5.7 in, resolution QVGA: 320 × 240 pixels, display area 115 (W) × 86 (H) mm, supply voltage DC 24 V (+10%, -15%) ripple voltage 200 mV max., backlight colors white, flash memory built-in flash memory : 3 MB.

Manufacturer

Mitsubishi Electric

Part number

GT1150HS-QLBD

Product family

GOT1000

Category

HMIs & Displays

Technical details

Series: GOT1000; Display device: STN monochrome (white/black) LCD; Screen size: 5.7 in; Resolution: QVGA: 320 × 240 pixels; Display area: 115 (W) × 86 (H) mm; Supply voltage: DC 24 V (+10%, -15%) ripple voltage 200 mV max.; Backlight colors: white; Flash memory: built-in flash memory : 3 MB; RS-232: 1 channel; USB device: 1 channel; Dimensions: 176 (W) × 220 (H) × 93 (D) mm; Power consumption: 9.36 W max. (390 mA/DC 24 V); Operating temperature: 0 to 40 °C

Weight

1 kg

Dimensions

176 (W) × 220 (H) × 93 (D)
