FLX3-CPUC100

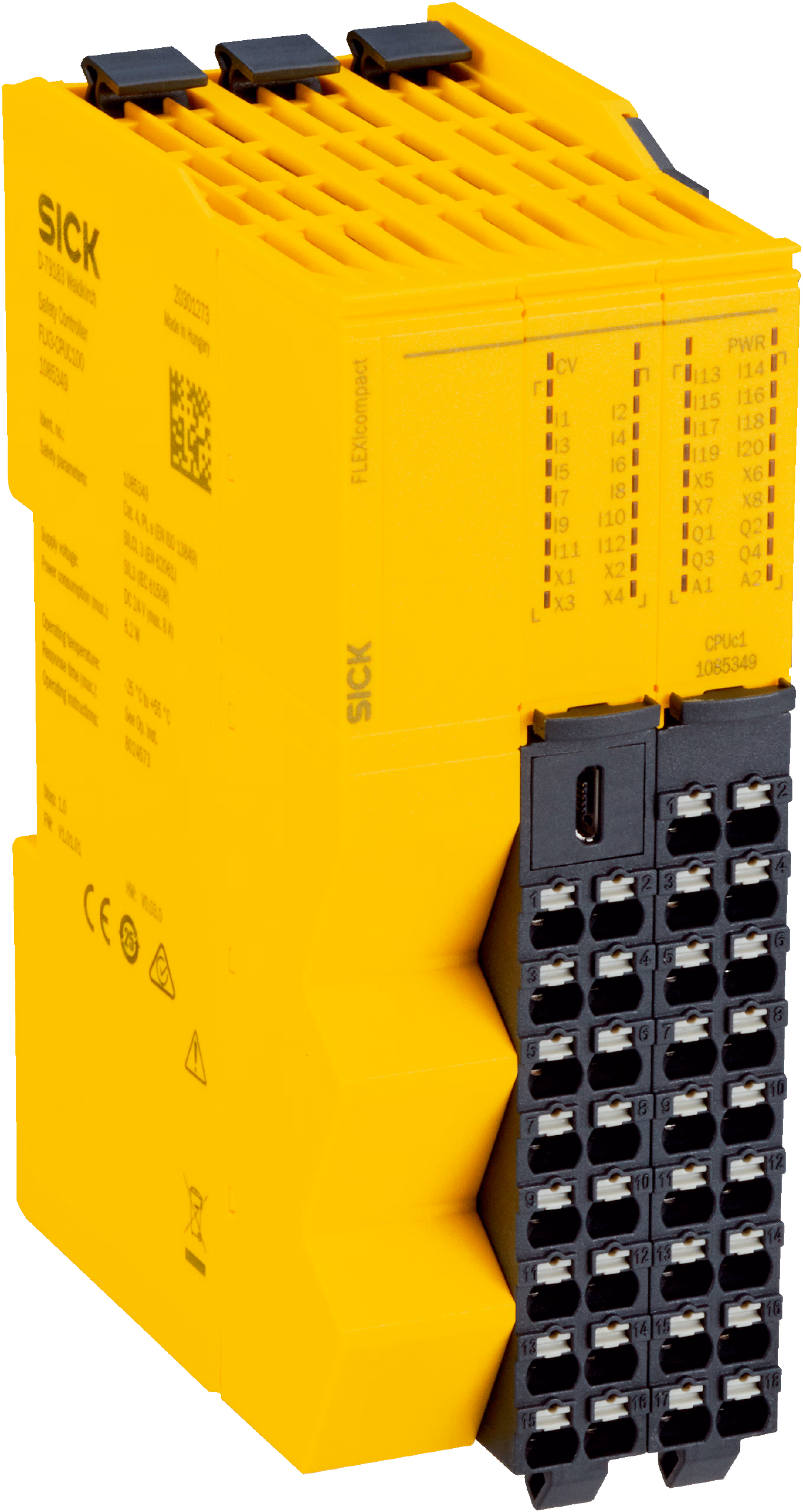

SICK FLX3-CPUC100 / FLX3-CPUC100 is a safety controller in the Flexi Compact family. Module: Main module; Short designation: CPUc1; Safety inputs: 20; Safety outputs: 4; Test outputs: 8; Connection type: Front connector with spring terminals; Configuration and diagnostics interface: USB connection via SmartPlug; Safe series connection with Flexi Loop: Yes; Items supplied: Main module, SmartPlug, Front connector with 16 terminals and opening for SmartPlug, Front connector with 18 terminals, Housing end cap, safety instruction, Operating instructions for download.

Manufacturer

Sick

Part number

FLX3-CPUC100

Product family

Flexi Compact

Category

Safety controllers

Technical details

Supply voltage VS: 24 V DC (16.8 V... 30 V); Configuration interface: USB connection via SmartPlug; Dimensions (W x H x D): 46.2 mm x 124.7 mm x 85.5 mm; Enclosure rating: IP20 (EN 60529); Ambient operating temperature: –25 °C... +55 °C; Weight: 277 g (± 5 %); Module: Main module; Description: The main module is the central process unit of the modular safety controller. All incoming signals are monitored and logically processed in the main module. The outputs are switched based on this processing.; Safety inputs: 20; Safety outputs: 4; Test outputs: 8; Security Level: SL-C 1 (IEC 62443-4-2); Configuration software: Safety Designer; Items supplied: Main module; SmartPlug; Front connector with 16 terminals and opening for SmartPlug; Front connector with 18 terminals; Housing end cap; Safety instruction; Operating instructions for download

Weight

0.277 kg

Dimensions

46.2 x 124.7 x 85.5
