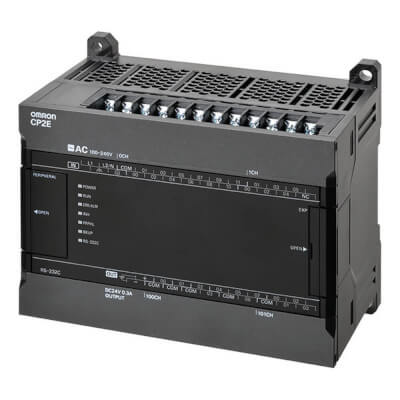

CP2E-E30DR-A

Omron CP2E-E30DR-A is a cP2E series compact PLC - Essential Type; 18 DI. CP2E series compact PLC - Essential Type; 18 DI, 12DO; Relay output; Power supply 220 VAC; 4 kStep Program memory.

Manufacturer

Omron

Part number

CP2E-E30DR-A

Product family

CP2E

Category

PLCs & Controllers

Technical details

Supply voltage type: AC; Input type: PNP/NPN; Number of digital inputs: 18; Output type: Relay; Number of digital outputs: 12; Program capacity: 8 K steps; Data memory capacity: 4 K words; Logic execution time: 0.23 µs; Communication port(s): Serial RS-232C, USB; Number of Ethernet ports: 0; Number of USB ports: 1; Number of RS-232 ports: 1; Number of RS-485 ports: 0; Communication option(s): CompoBus/S Slave; Number of encoder input channels: 6; Max. encoder input frequency: 100 kHz; Max. number of PTP axes: 0; Max. pulse output frequency: 0 kHz; Function Block programming: TRUE; Battery-free memory backup: TRUE; Real-time clock: FALSE; Analogue option boards: FALSE; Max. number of analogue I/O channels: 24; Max. number of local I/O points: 150; Max. number of expansion units: 3; Built-in auxiliary 24 VDC output: 300 mA; Operating temperature range: -20-60 °C; Product Height (unpacked): 90 mm; Product Width (unpacked): 130 mm; Product Depth (unpacked): 80 mm; Product Weight (unpacked): 670 g

Weight

0.67 kg

Dimensions

90 × 130 × 80 (H × W × D)
