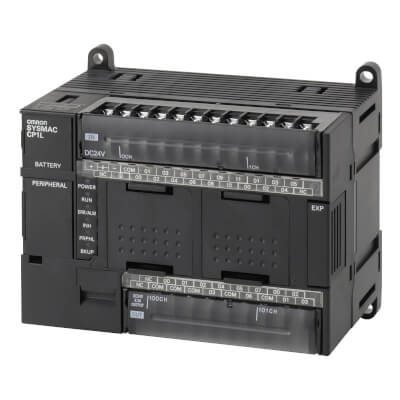

CP1L-M30DR-A

Omron CP1L-M30DR-A is a cP1L programable logic controller with 10K program step capacity. CP1L programable logic controller with 10K program step capacity, 30x integrated I/O, 12x relay outputs, 100-240 VAC power supply.

Manufacturer

Omron

Part number

CP1L-M30DR-A

Product family

CP1L

Category

PLCs & Controllers

Technical details

Supply voltage type: AC; Number of digital inputs: 18; Input type: PNP/NPN; Number of digital outputs: 12; Output type: Relay; Program capacity: 10 K steps; Data memory capacity: 32 K words; Logic execution time: 0.55 µs; Communication port(s): USB; Number of Ethernet ports: 0; Number of USB ports: 1; Number of RS-232 ports: 0; Number of RS-485 ports: 0; Communication option(s): Serial RS-232C, Serial RS-422, Serial RS-485; Number of encoder input channels: 4; Max. encoder input frequency: 100 kHz; Max. number of PTP axes: 0; Max. pulse output frequency: 0 kHz; Function Block programming: TRUE; Battery-free memory backup: FALSE; Real-time clock: TRUE; Analogue option boards: FALSE; Max. number of analogue I/O channels: 25; Max. number of local I/O points: 150; Max. number of expansion units: 3; Built-in auxiliary 24 VDC output: 300 mA; Operating temperature range: 0-55 °C; Product Height (unpacked): 90 mm; Product Width (unpacked): 130 mm; Product Depth (unpacked): 85 mm; Product Weight (unpacked): 610 g

Weight

0.61 kg

Dimensions

90 × 130 × 85 (H × W × D)
