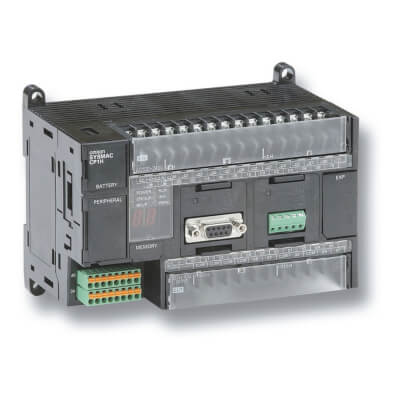

CP1H-XA40DT1-D

Omron CP1H-XA40DT1-D is a cP1H programable logic controller with integrated analog and 20K program step capacity. CP1H programable logic controller with integrated analog and 20K program step capacity, 40x integrated I/O, 16x PNP, 24 VDC power supply.

Manufacturer

Omron

Part number

CP1H-XA40DT1-D

Product family

CP1H

Category

PLCs & Controllers

Technical details

Supply voltage type: DC; Number of digital inputs: 24; Input type: PNP/NPN; Number of digital outputs: 16; Output type: PNP; Program capacity: 20 K steps; Data memory capacity: 32 K words; Logic execution time: 0.10 µs; Communication port(s): USB; Number of Ethernet ports: 0; Number of USB ports: 1; Number of RS-232 ports: 0; Number of RS-485 ports: 0; Communication option(s): CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485; Number of analog inputs: 4; Number of analog outputs: 2; Number of encoder input channels: 4; Max. encoder input frequency: 100 kHz; Max. number of PTP axes: 4; Max. pulse output frequency: 100 kHz; Function Block programming: TRUE; Battery-free memory backup: FALSE; Real-time clock: TRUE; Analogue option boards: FALSE; Max. number of analogue I/O channels: 62; Max. number of local I/O points: 320; Max. number of expansion units: 7; Built-in auxiliary 24 VDC output: 0 mA; Operating temperature range: 0-55 °C; Product Height (unpacked): 90 mm; Product Width (unpacked): 150 mm; Product Depth (unpacked): 85 mm

Weight

0.6 kg

Dimensions

90 × 150 × 85 (H × W × D)
