C16H4

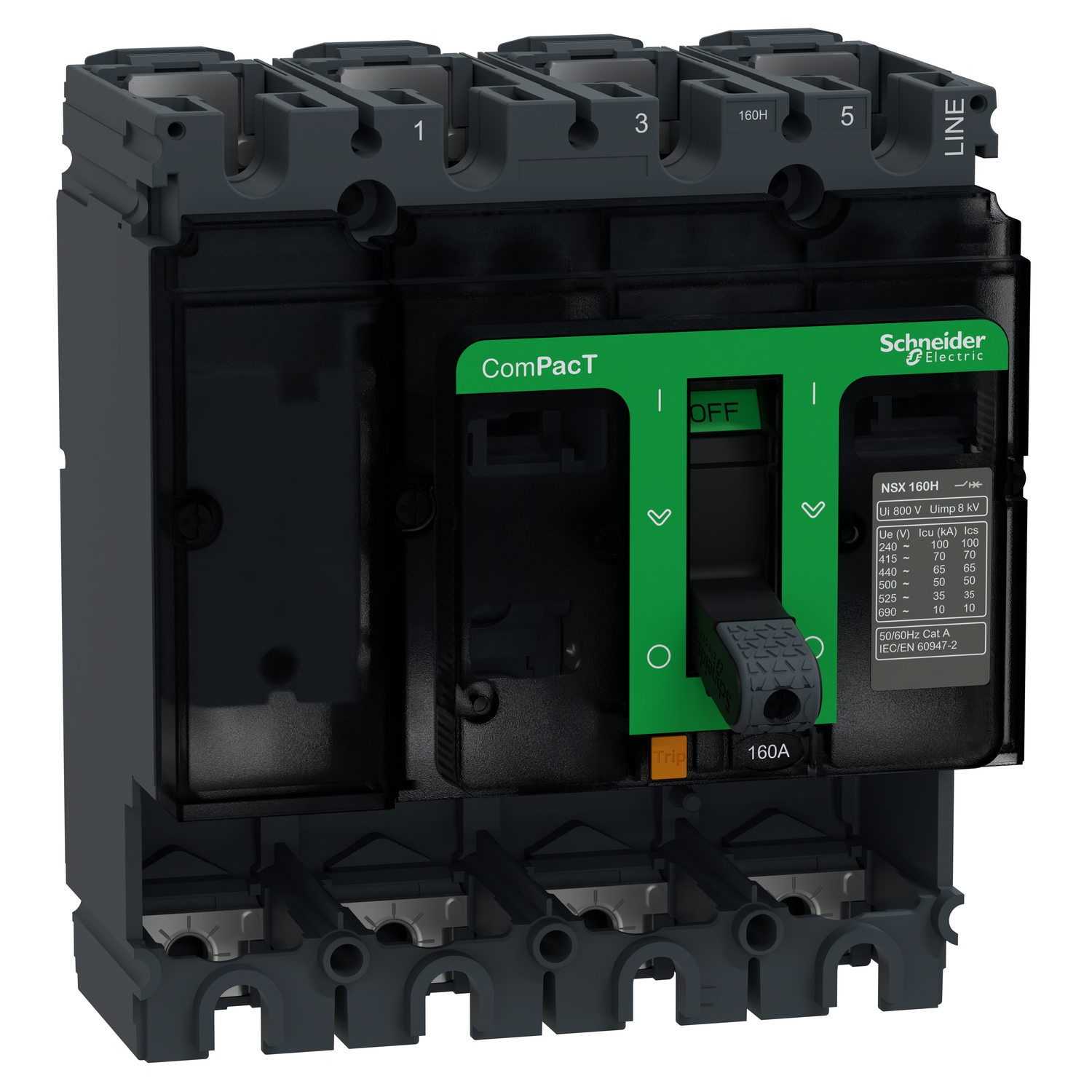

Schneider Electric C16H4 – Circuit breaker basic frame, ComPacT NSX160H, 70 kA/415VAC, 4 poles, 160A frame rating, without trip unit
Availability● On RequestSubject to confirmation
Estimated Dispatch5-7 business daysTypical for available stock
Warranty12 MonthsNeoIPS warranty
Verified ProductPart number confirmed
Global SourcingSupplier network
Quality Assured12-month warranty
Responsive SupportBefore and after sale
Schneider Electric C16H4 is a circuit breaker basic frame, ComPacT NSX160H, 70 kA/415VAC, 4 poles, 160A frame rating, without trip unit. This is a 4 poles basic frame for ComPacT NSX160H. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications.
- Manufacturer
- Schneider Electric
- Part number
- C16H4
- Product family
- ComPacT NSX
- Category
- Circuit Breakers
- Technical details
- ComPacT NSX160H; 70 kA/415VAC; 4 poles; 160A frame rating; without trip unit; This is a 4 poles basic frame for ComPacT NSX160H; This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 70kA at 415VAC 50/60Hz
- Dimensions
- 140 × 161 × 86
