C16F4TM125D1

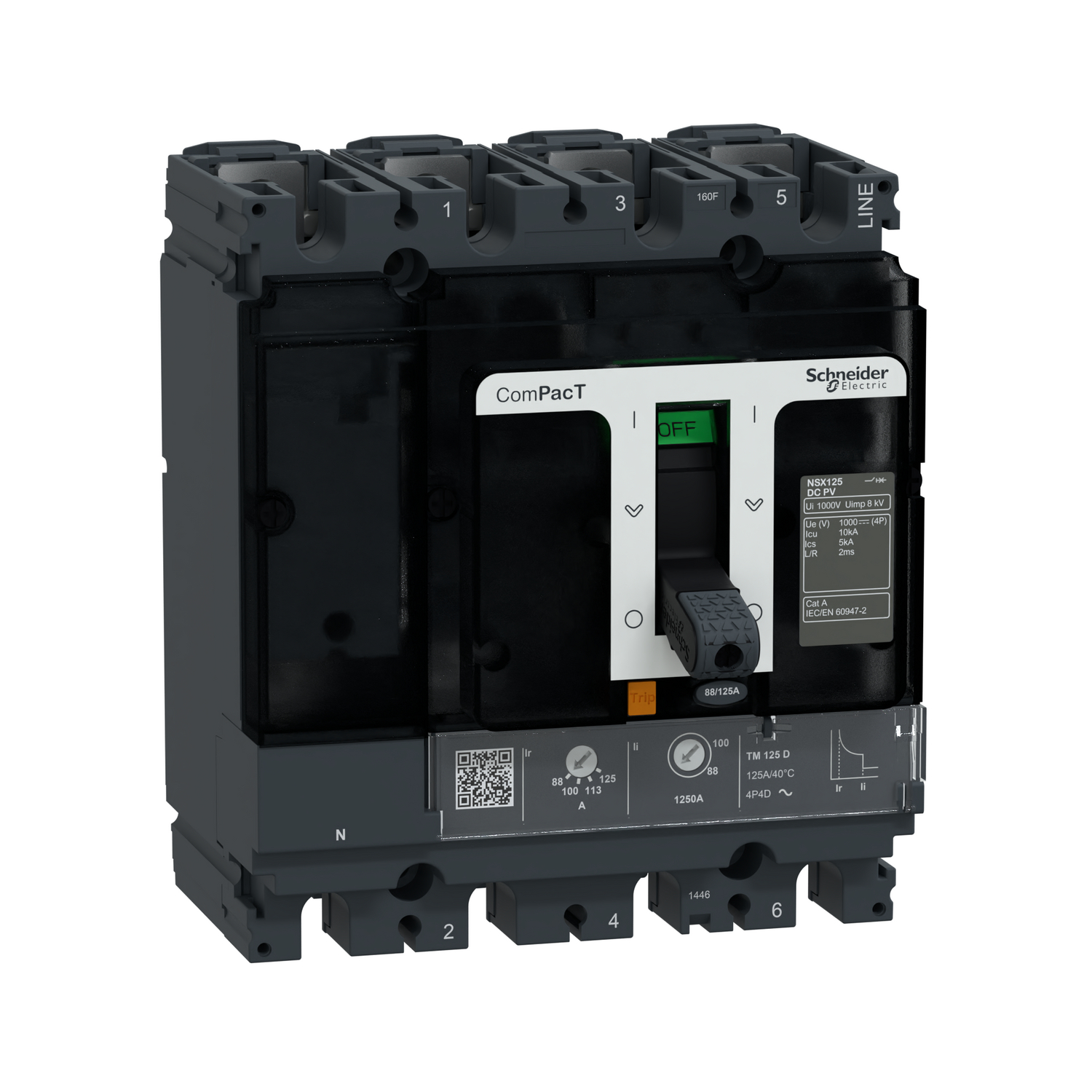

Schneider Electric C16F4TM125D1 – Circuit breaker, ComPacT NSX125 DC PV, 10 kA/1000VDC, 4 poles, TM-DC PV trip unit 125A
Availability● On RequestSubject to confirmation
Estimated Dispatch5-7 business daysTypical for available stock
Warranty12 MonthsNeoIPS warranty
Verified ProductPart number confirmed
Global SourcingSupplier network
Quality Assured12-month warranty
Responsive SupportBefore and after sale
Schneider Electric C16F4TM125D1 is a circuit breaker, ComPacT NSX125 DC PV, 10 kA/1000VDC, 4 poles, TM-DC PV trip unit 125A. ComPacT NSX 125F DC PV is a 4 poles circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for photovoltaic applications.
- Manufacturer
- Schneider Electric
- Part number
- C16F4TM125D1
- Product family
- ComPacT NSX125
- Category
- Circuit Breakers
- Technical details
- ComPacT NSX125 DC PV; 10 kA/1000VDC; 4 poles; TM-DC PV trip unit 125A; The breaking capacity (Icu) is 10kA at 1000VDC with 4 poles series; The rated current is 125A and the operational voltage is 1000VDC; The dimensions are 161mm x 140mm x 186mm
- Dimensions
- 161 × 140 × 186
