A9R11480

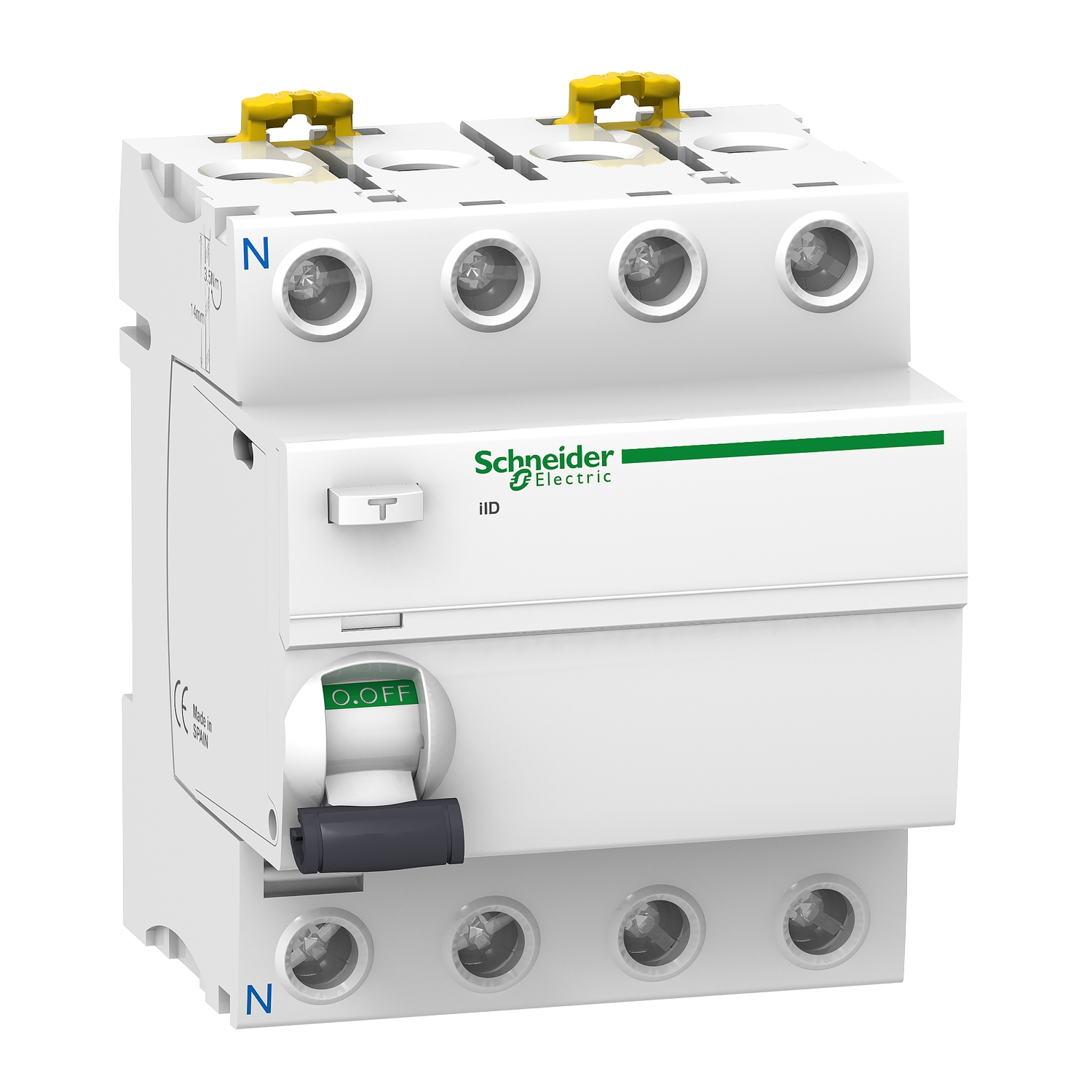

Schneider Electric A9R11480 is a residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 30 mA. This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 80 A rated current, 30mA earth leakage sensitivity and AC type protection class.

Manufacturer

Schneider Electric

Part number

A9R11480

Product family

Acti9

Category

Circuit Breakers

Technical details

Acti9 iID; 4P; 80A; 30 mA; This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB); It is a 4P circuit breaker with 80 A rated current, 30mA earth leakage sensitivity and AC type protection class; This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard

Weight

0.37 kg

Dimensions

72 × 91
