A9N26929

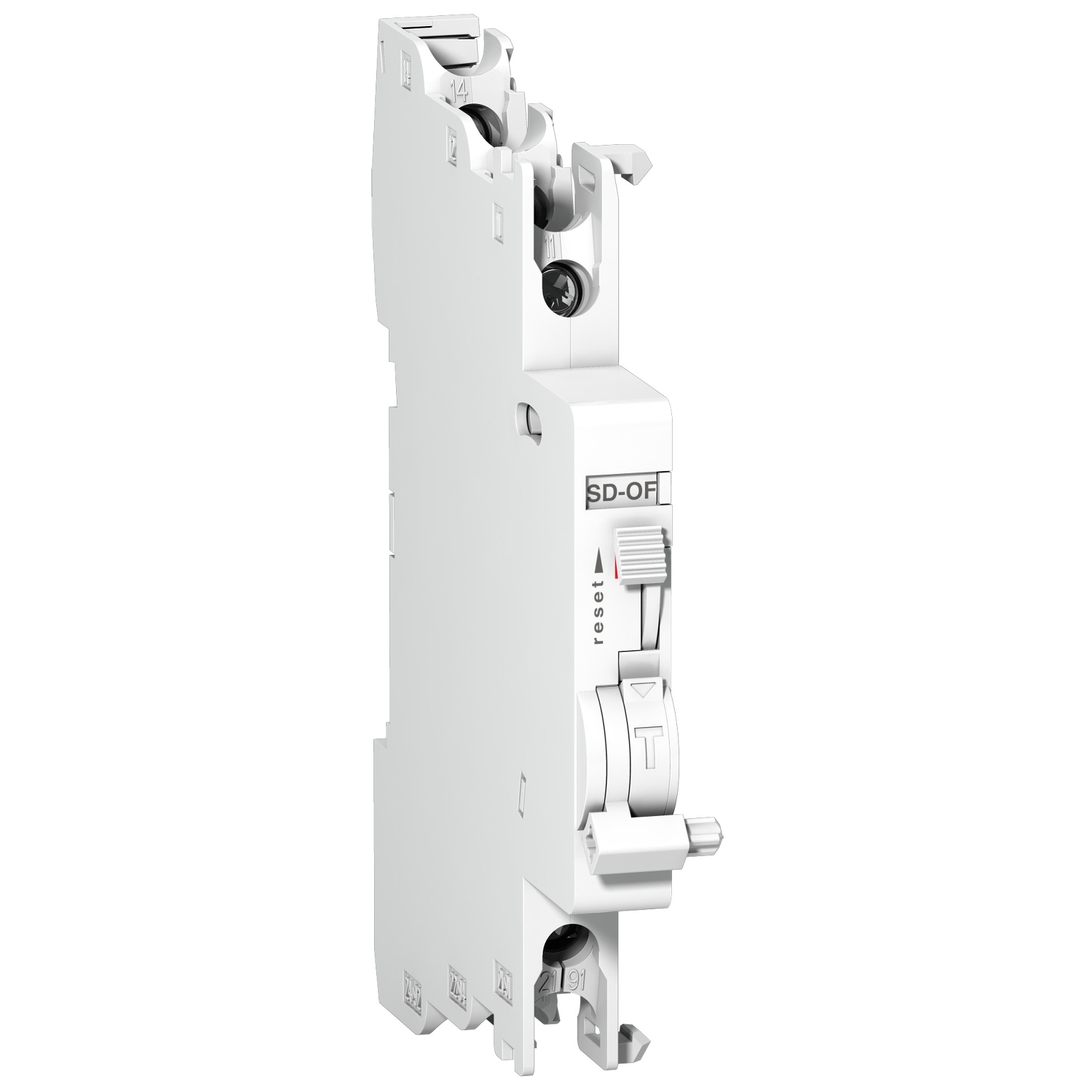

Schneider Electric A9N26929 is an Acti9 - Auxiliary contact OC plus 1 SD and OF ac dc. This Acti9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is dedicated to Acti9 C120, C60H-DC, DPN N Vigi.

Manufacturer

Schneider Electric

Part number

A9N26929

Product family

Acti9 C120

Category

Electrical Accessories

Technical details

This Acti9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact; It is dedicated to Acti9 C120, C60H-DC, DPN N Vigi; It comes with 1 changeover contact indicating the open or closed position (OF); The width in 9mm pitches is 1; The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC; The operating frequency is 50Hz or 60Hz; The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC
