A9N26924

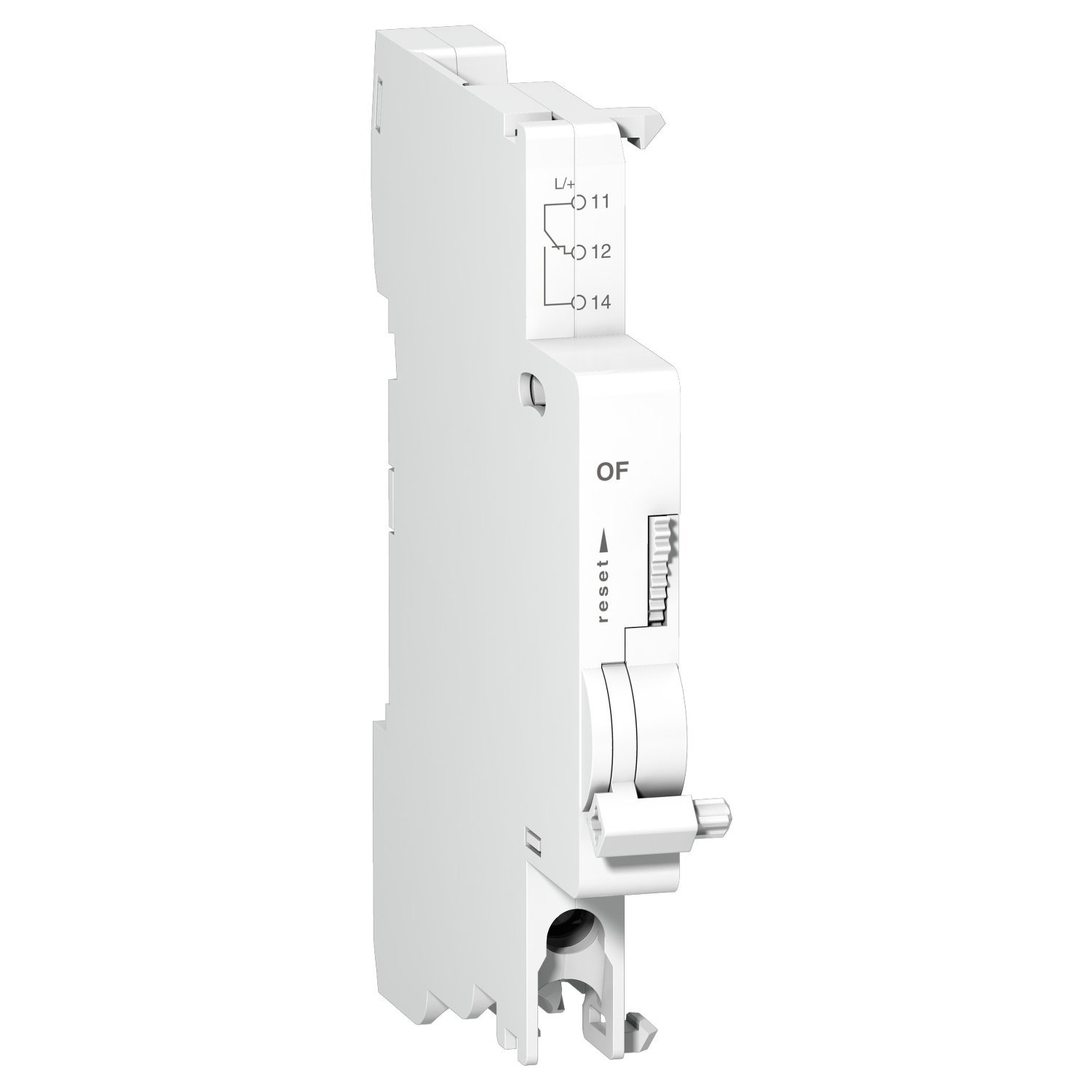

Schneider Electric A9N26924 is an Acti9 - Auxiliary contact OC plus 1 SD and OF ac dc. This Acti9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is dedicated to C60, C40, C120, C40, iID, DT40, iDPN Vigi, SW60-DC, iTG40 products.

Manufacturer

Schneider Electric

Part number

A9N26924

Product family

Acti9

Category

Electrical Accessories

Technical details

This Acti9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact; It is dedicated to C60, C40, C120, C40, iID, DT40, iDPN Vigi, SW60-DC, iTG40 products; It comes with 1 changeover contact indicating the open or closed position (OF); The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC; The operating frequency is 50Hz or 60Hz; The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC; The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC

Weight

0.03 kg

Dimensions

9 × 85.3
