A9N15651

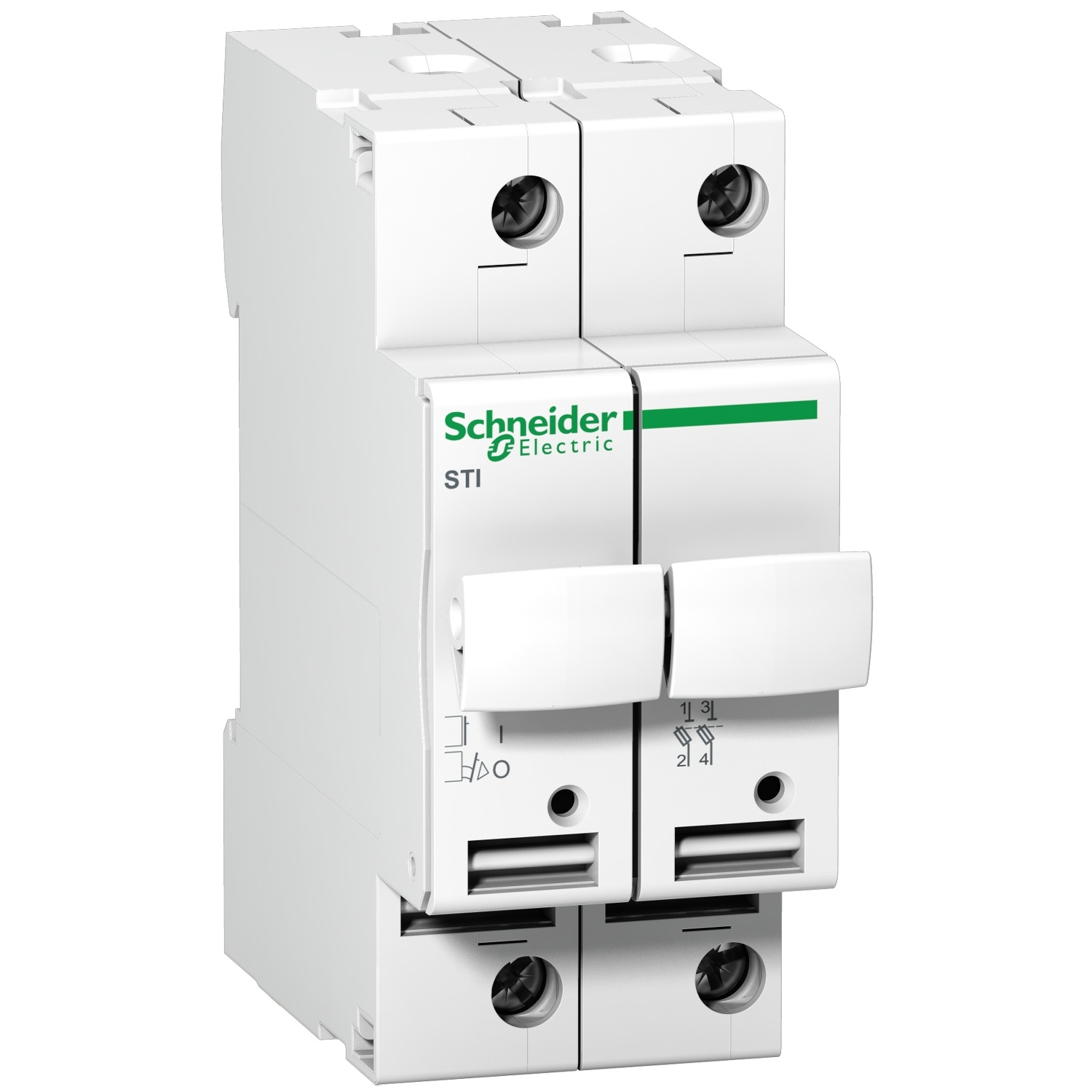

Schneider Electric A9N15651 is an Acti9 - fuse-disconnector STI - 2 poles - 25 A - for fuse 10.3 x 38 mm. This Acti9 STI isolatable fuse-carriers is a low voltage fuse-disconnector. It is used for tertiary and industrial applications requiring a high breaking capacity.

Manufacturer

Schneider Electric

Part number

A9N15651

Product family

Acti9

Category

Cables and Connectors

Technical details

This Acti9 STI isolatable fuse-carriers is a low voltage fuse-disconnector; It is used for tertiary and industrial applications requiring a high breaking capacity; It has 2P pole, up to 25A rated current, and gG or aM fuse curve with a fuse cartridge type of 10.3mm x 38mm; it can be mounted on DIN rail for modular installation; it has an IP20 degree of protection on its terminals, becoming IP40 once in modular enclosure; An optional 230V neon indicator light indicates fuse blowing (off in normal operation and lit red after fuse blowing)

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
