A9L40600

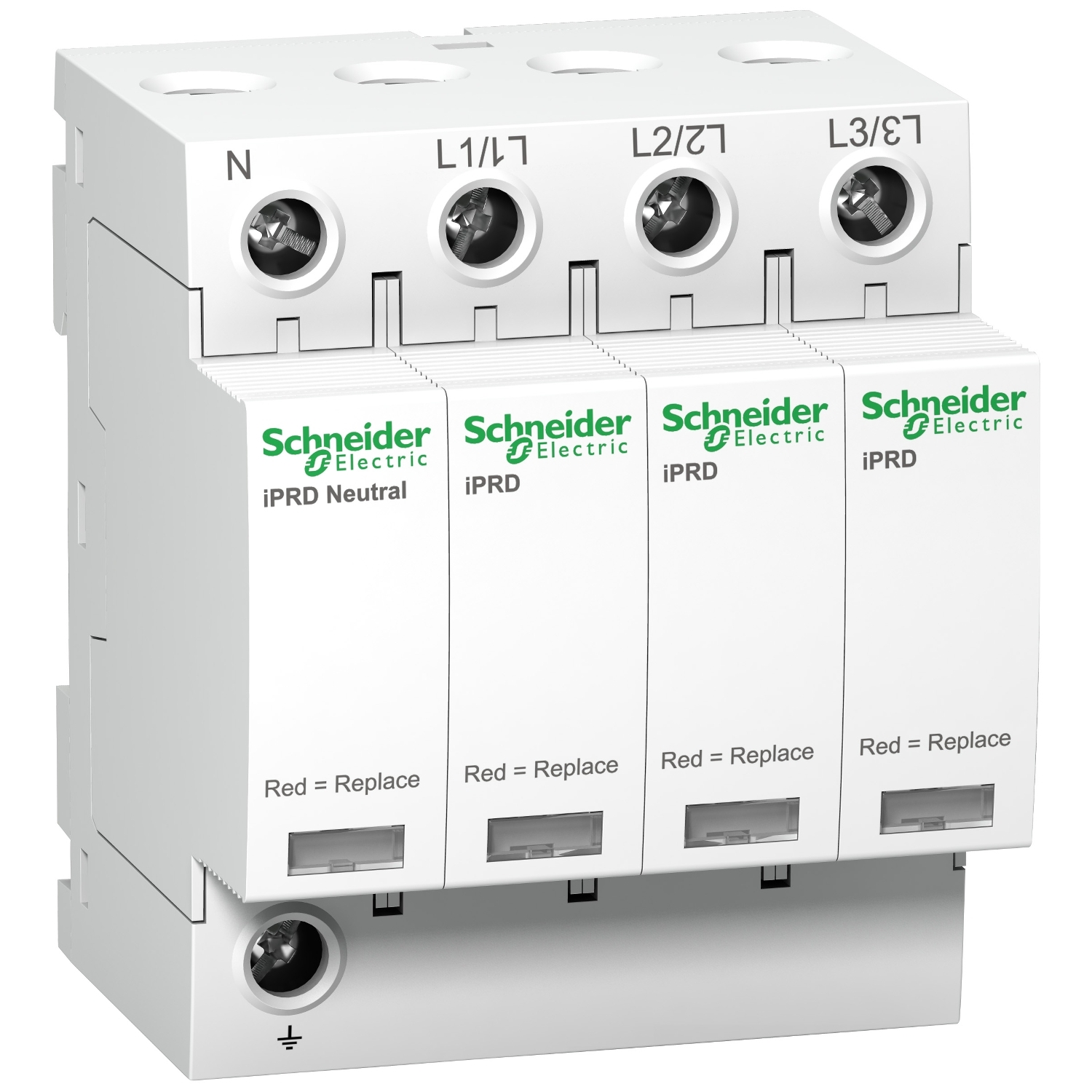

Schneider Electric A9L40600 is an IPRD40 modular surge arrester - 3P + N - 350 V. This Acti9 iPRD40 surge arrester protects 3P+N installations. It allows quick replacement of damaged cartridges.

Manufacturer

Schneider Electric

Part number

A9L40600

Product family

Acti9

Category

Industrial Electrical Component

Technical details

This Acti9 iPRD40 surge arrester protects 3P+N installations; This Type 2 device is recommended for high risk level and incoming panel board; The associated circuit breaker Isc breaking capacity can go up to 50kA; This Acti9 iPRD40 is compatible with TT and TN-S earthing system; The Imax rated discharge current is 40kA; The In nominal discharge current is 15kA; The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth

Weight

0.45 kg

Dimensions

72 × 85

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
