A9F45250

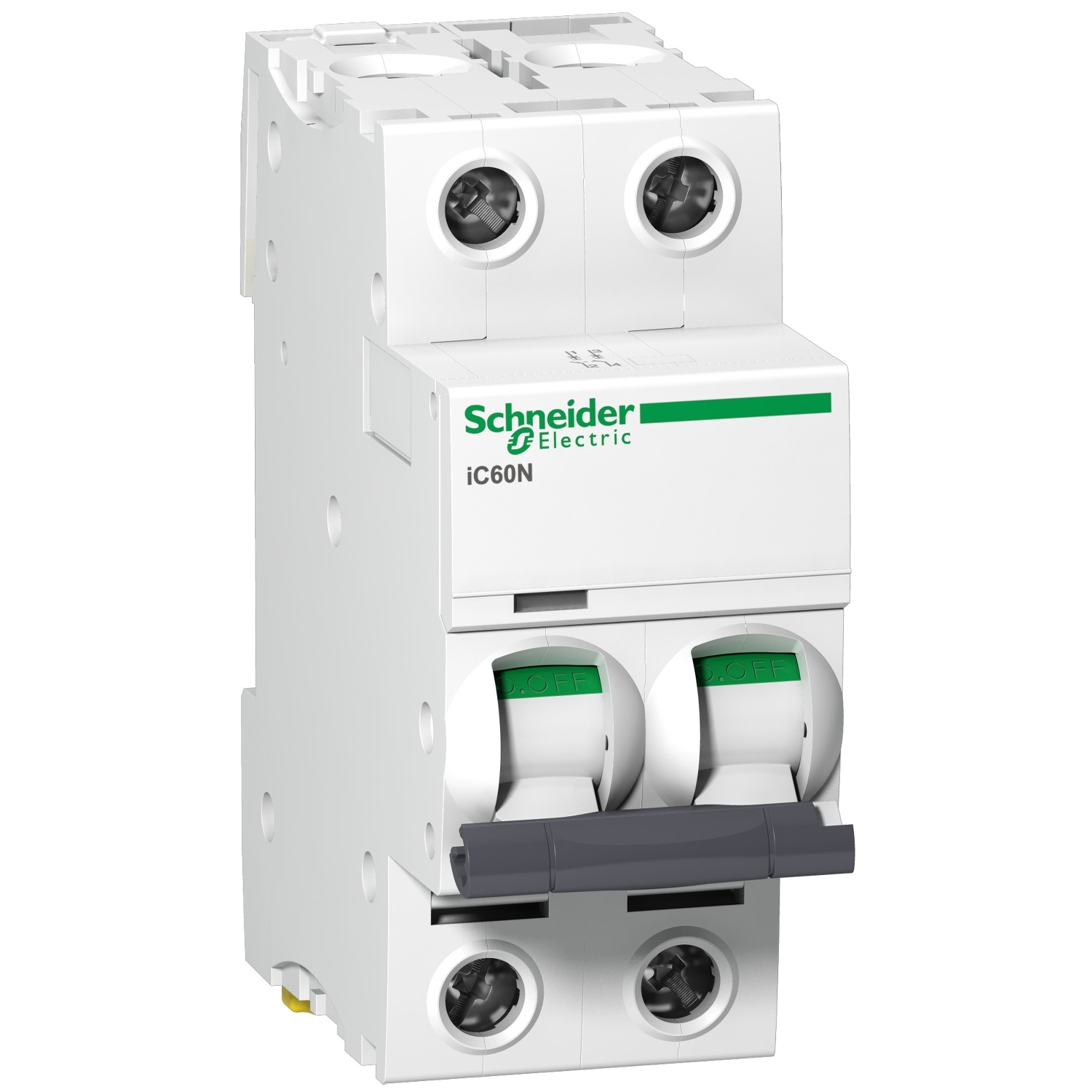

Schneider Electric A9F45250 is an Acti9 iC60N 2P 50A D Miniature Circuit Breaker. This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 50A rated current and D tripping curve.

Manufacturer

Schneider Electric

Part number

A9F45250

Product family

Acti9 iC60N

Category

Circuit Breakers

Technical details

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB); It is a 2P circuit breaker with 2 protected poles, 50A rated current and D tripping curve; It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2; This miniature circuit breaker protects circuits against short circuit and overload current; It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles; The Ui rated insulation voltage is 500VAC; Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost

Weight

0.25 kg

Dimensions

36 × 85
