A9E18327

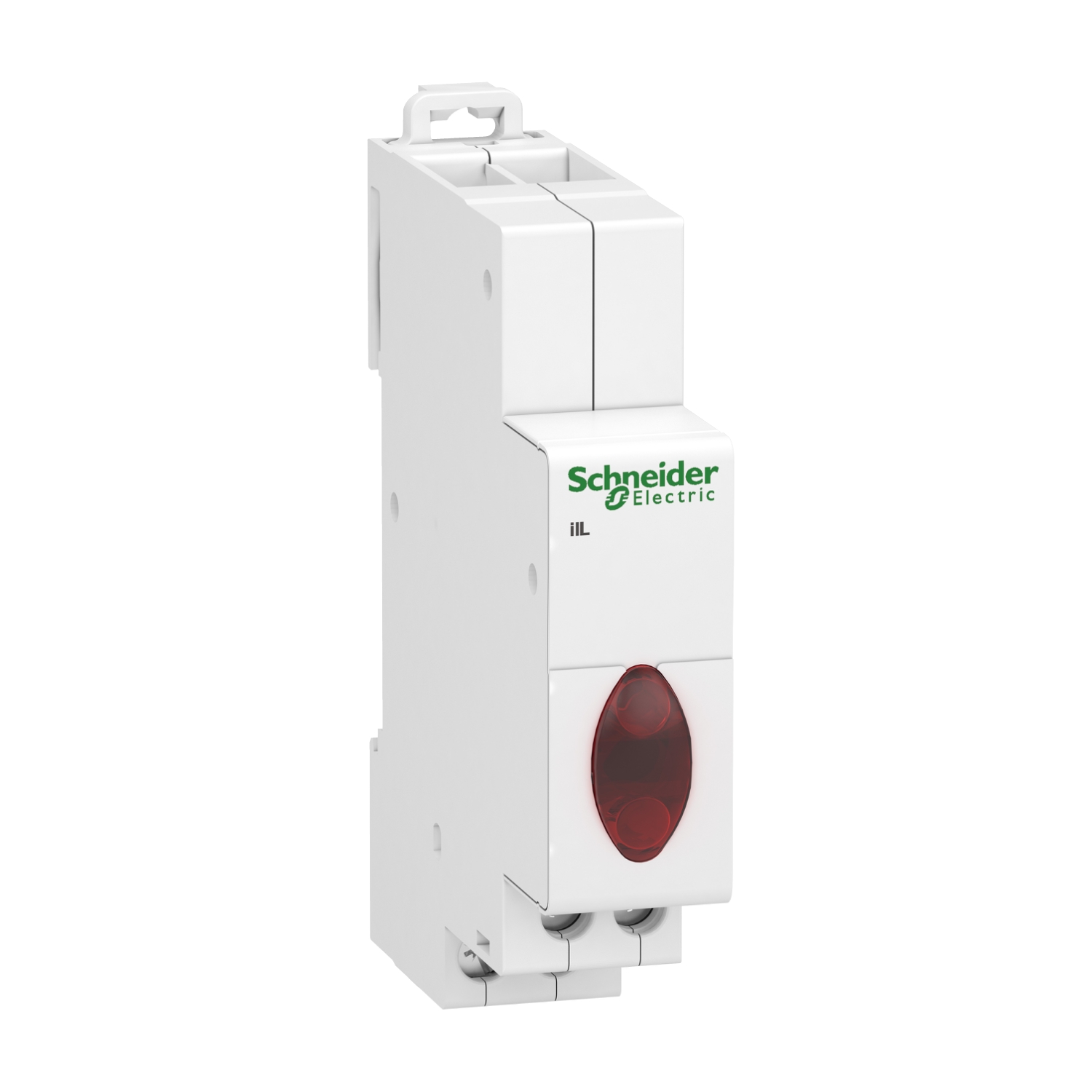

Schneider Electric A9E18327 is an Acti9 iIL Three-phase voltage indicator light - Red - 230-400 Vac. This Acti9 iIL is a three-phase voltage presence indicator light. The voltage is 230VAC to 400VAC.

Manufacturer

Schneider Electric

Part number

A9E18327

Product family

Acti9

Category

Control and Signalling Devices

Technical details

This Acti9 iIL is a three-phase voltage presence indicator light; The voltage is 230VAC to 400VAC; The 3 red light on the front face lights up to indicate that a voltage is present; The connection could be done with flexible copper cables or with ferrule cables from 0.5mm² up to 2 x 2.5mm²; The tightening torque for the PZ1 screwdriver to connect screw connections is 1N.m; The connection could be done with rigid copper cables from 0.5mm² minimum up to 2 x 2.5mm2 maximum; The LED indication light maximum consumption per indicator light is 0.3W

Weight

0.065 kg

Dimensions

18 × 82
