A9D19820

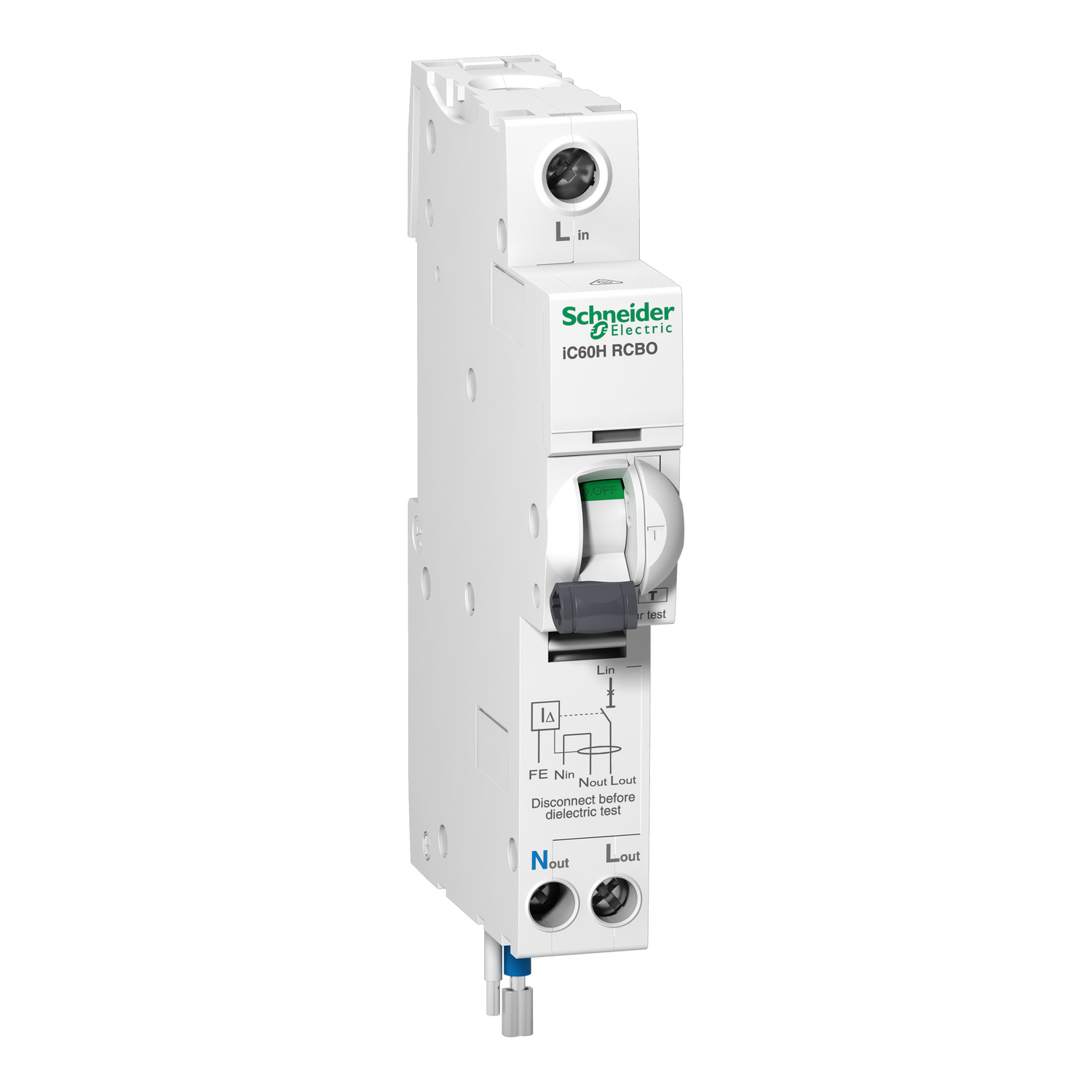

Schneider Electric A9D19820 is an IC60H - earth leakage circuit breaker - 1P+Ns - C curve - 20 A - 30 mA - 110 V. This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 20 A rated current and C tripping curve.

Manufacturer

Schneider Electric

Part number

A9D19820

Product family

Acti9 iC60

Category

Circuit Breakers

Technical details

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO); It is a 1P+N circuit breaker with 1 protected pole, 20 A rated current and C tripping curve; The earth leakage protection class is A type with a sensitivity of 30mA; The earth-leakage protection time delay is instantaneous; The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard; This product is compliant with AS/NZS 61009.1 and IEC 61009-1 standards; It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles

Weight

0.205 kg

Dimensions

18 × 110
