A9C66410

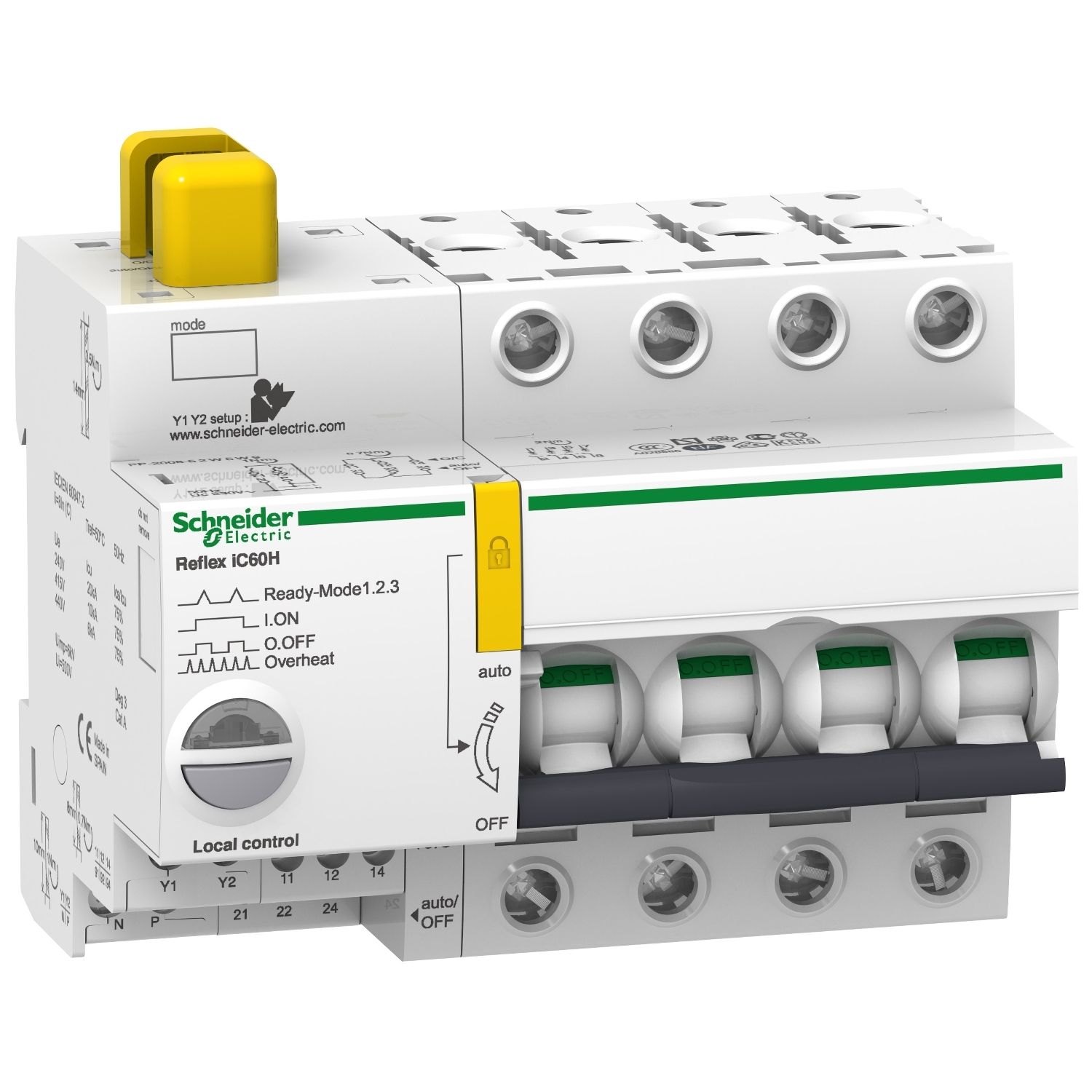

Schneider Electric A9C66410 is a reflex iC60H Ti24 10 A 4P curve D integrated control MCB. This Acti9 Reflex iC60N is a low voltage integrated control circuit breaker. It is a 4P circuit breaker with protected poles, 10 A rated current and D tripping curve.

Manufacturer

Schneider Electric

Part number

A9C66410

Product family

Acti9

Category

Industrial Electrical Component

Technical details

This Acti9 Reflex iC60N is a low voltage integrated control circuit breaker; It is a 4P circuit breaker with protected poles, 10 A rated current and D tripping curve; As circuit breaker, its breaking capacity, according to IEC/EN 60947-2, is 30kA at 220VAC to 240VAC, and 15kA at 380VAC to 415VAC; As a circuit breaker, it protects circuits against short circuit and overload currents, disconnection in the industrial sector; It can control a device remotely by latched and/or impulse-type order according to the 2 operating modes to be chosen by the user; The Ti24 interface allows direct interfacing of the Reflex iC60 with a PLC; It allows to execute remote control, to indicate the state of the control circuit and circuit breaker state information, to connect it to the Acti9 Smartlink thanks to the prefabricated cables

Dimensions

117 × 84
