A9C32836

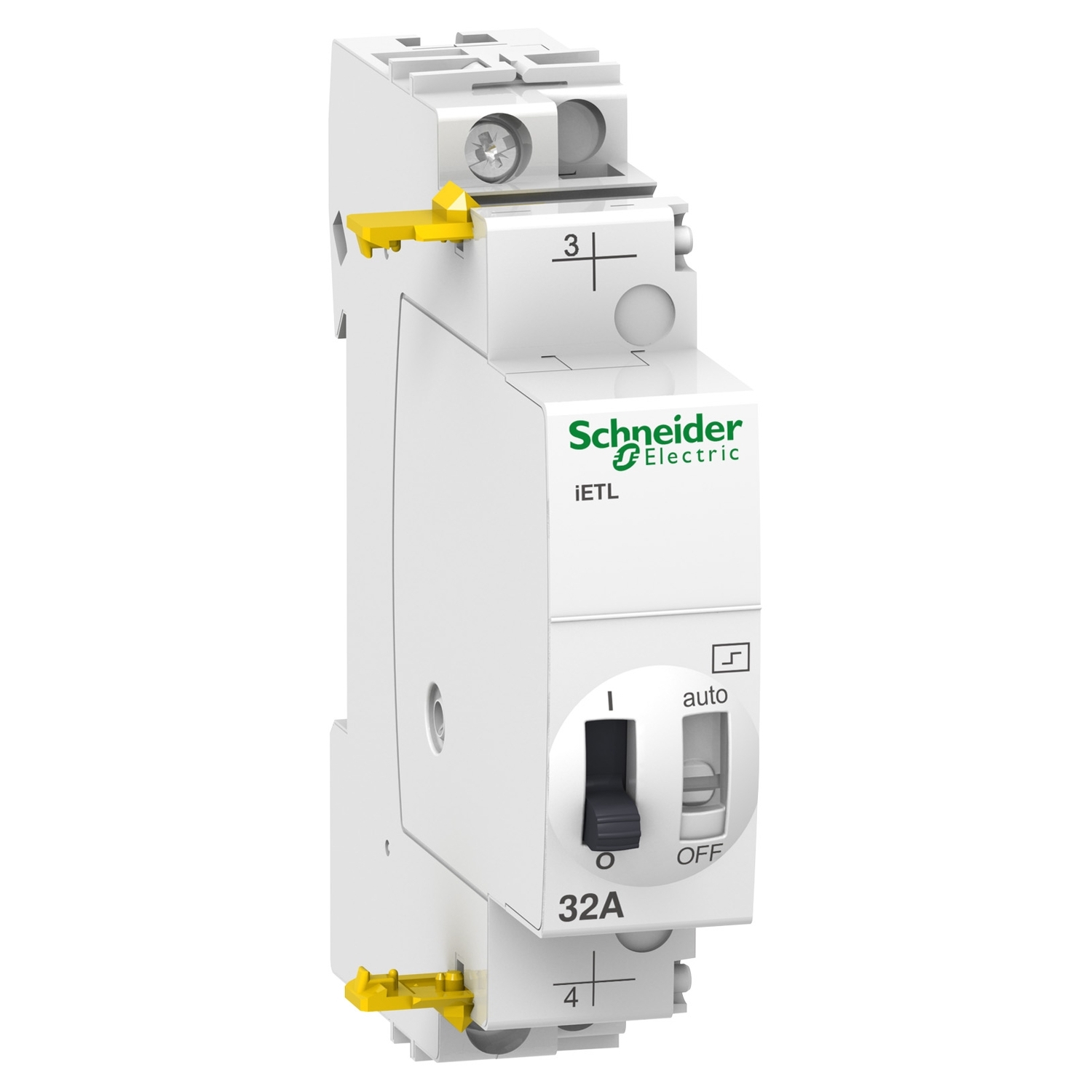

Schneider Electric A9C32836 is an extension ETL iTL 32 - 1P -1NO - 32A - coil 110 VDC - 230...240VAC 50/60Hz. This Acti9 iETL iTL 32 is a modular extension for impulse relay. This 1P device has 1 normally open contact.

Manufacturer

Schneider Electric

Part number

A9C32836

Product family

Acti9

Category

Industrial Electrical Component

Technical details

This Acti9 iETL iTL 32 is a modular extension for impulse relay; This 1P device has 1 normally open contact; Rated current is 32A, 24VAC to 250VAC operating voltage and it operates with 230VAC to 240VAC or 110VDC control voltage; Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22; The switching frequency is 5 switching operations/minute or 100 switching operations/day; The duration of the command order should be 50ms; The Ui rated insulation voltage is 440VAC
