A9C30315

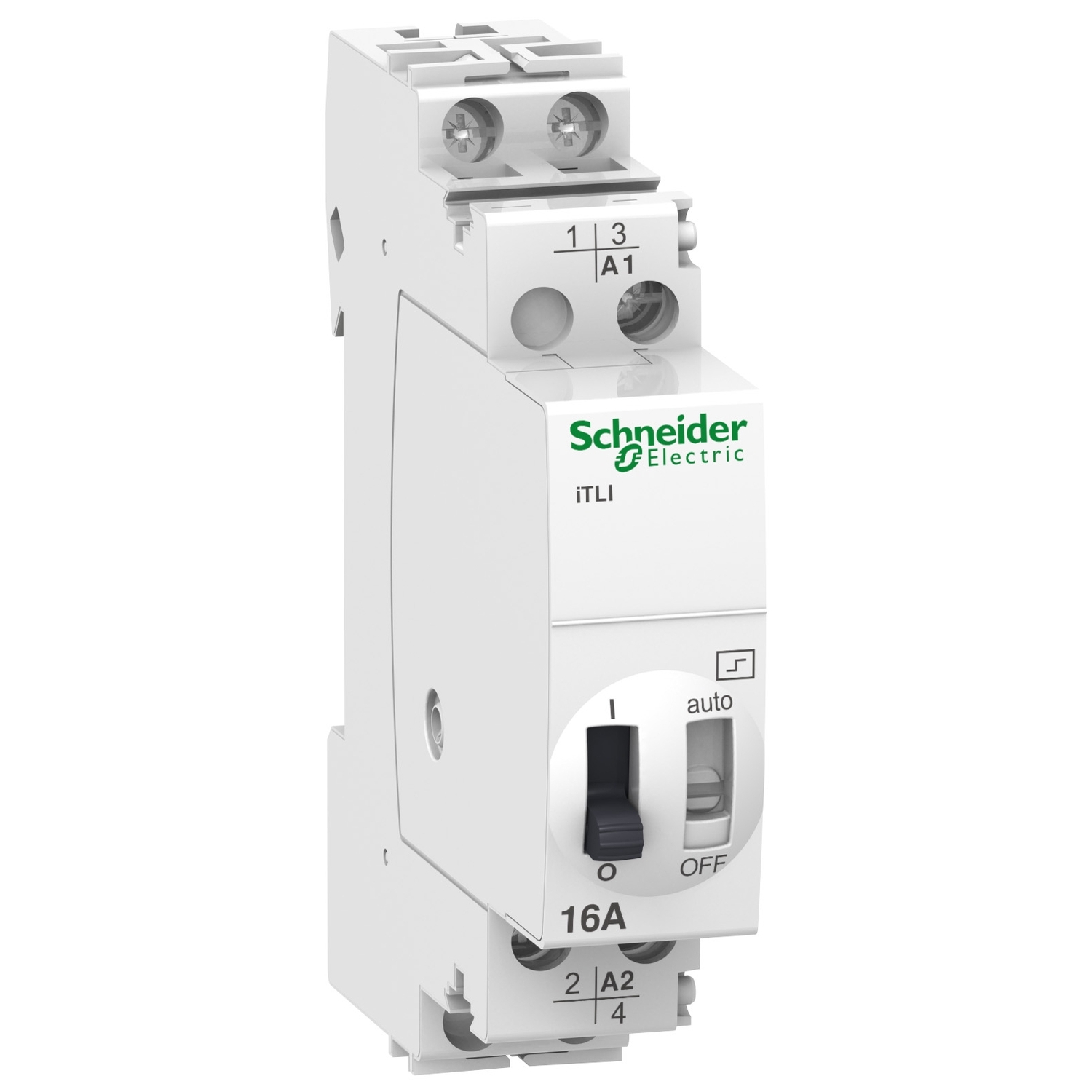

Schneider Electric A9C30315 is an impulse relay iTLI - 2P - 1NO+1NC - 16A - coil 130 VAC 50/60Hz- 48 VDC. This Acti9 iTLi is a modular impulse relay. It is a changeover contact with 1 normally open and 1 normally close contact.

Manufacturer

Schneider Electric

Part number

A9C30315

Product family

Acti9

Category

Relays and Accessories

Technical details

This Acti9 iTLi is a modular impulse relay; It is a changeover contact with 1 normally open and 1 normally close contact; Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 130VAC or 48VDC control voltage; Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22; The switching frequency is 100 switching operations/day or 5 switching operations/minute; The duration of the command order should be between 50ms to 1s; The Ui rated insulation voltage is 440VAC

Dimensions

18 × 84
