889D-F4AC-3

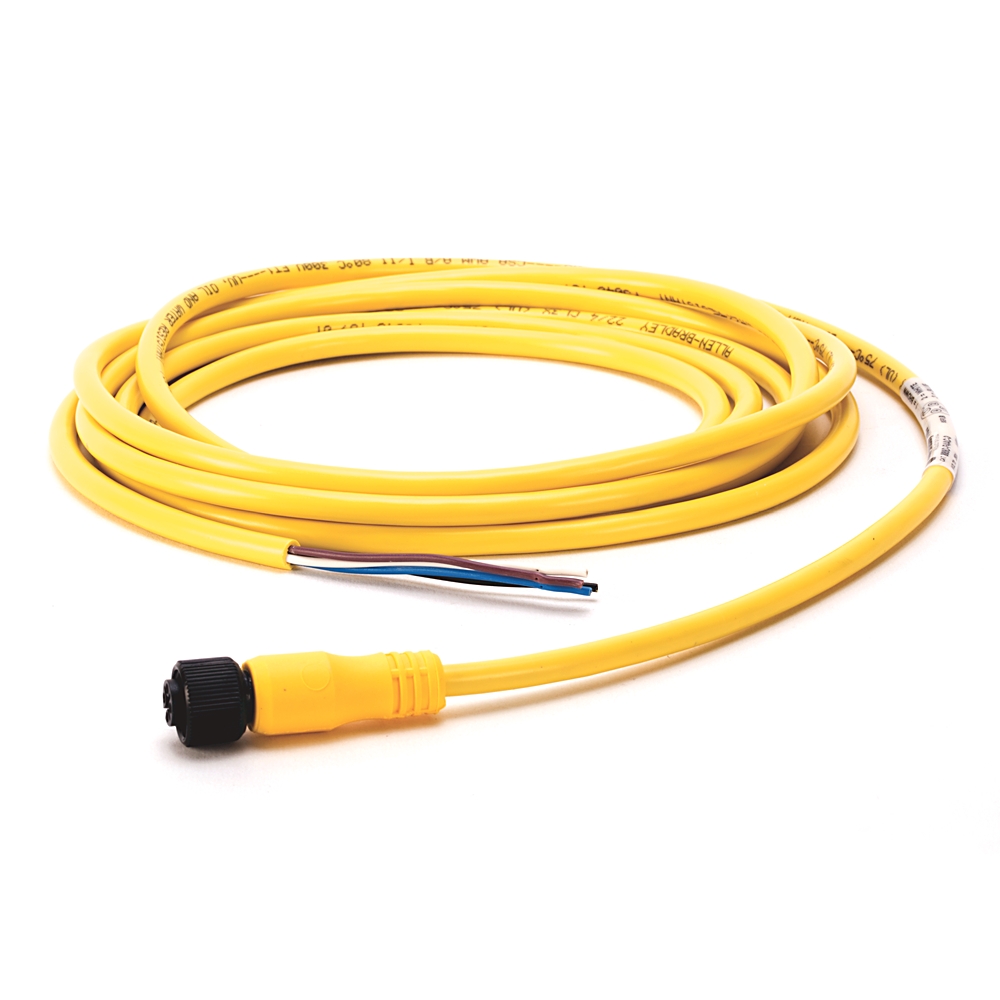

Cordset: DC Micro (M12), Female, Straight, 4-Pin, PVC Cable, Yellow, Unshielded, IEC Color Coded, No Connector, 3 meter (9.84 feet), 22AWG The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk. First End Connection | Female, Straight (int threads),Female, Straight (Int Threads) First End Number of pins | 4-pin Jacket | PVC Cbl, Yellow, UnShld,PVC Cable, Yellow, 22 AWG Second End Conductors | Same as First End Second End Connection | No Connector,Cable,No Connector,Cable - IEC Stndrd Color Code Wire Size | 22 AWG Rated voltage | 250 V Rated current In | 4 A Assembly rating | 4A @ 250V Cable rating | UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant Number of poles | 4 Degree of protection (IP), mounted | IP69K Operating temperature | -20 °C Number of pins | 4-pin Second end conductors | Same as first end Enclosure type rating | NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K First end connector style | Female, straight (internal threads, except mini receptacles) Cable type | Oil-resistant PVC jacket, 18 or 22 AWG conductors, 300V Material | Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass Bend radius | 10 x diam With shield connection | False Cable length | 3000 mm Second end termination style | No connector Second end termination type | Cable - IEC standard color code Diameter, approx | Connector: 14 mm (0.56 in) @ straight male Length, approx | Connector: 50.8 mm (2.0 in) @ straight male Height, approx | Connector: 31.8 mm (1.25 in) @ right angle male Product type feature | Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin Diameter | 2 core cable: 5 mm (0.21 in), 3 core cable: 5 mm (0.21 in), 4 core cable: 5 mm (0.21 in), 5 core cable: 6.5 mm (0.25 in), 4 core cable (18 AWG): 6.5 mm (0.25 in) Material of contact surface | Gold Material housing | Plastic Type of plug-in contact, inner side | Female (bus) Mounting method | Freely positionable Drawings -- 2-Dimensional Drawing (PDF) | Download (PDF) 3-Dimensional STEP model (STP) | Download (ZIP) Product Drawing | Drawing (DXF) Drawings -- 2-Dimensional Drawing (PDF) Download (PDF) 3-Dimensional STEP model (STP) Download (ZIP) Product Drawing Drawing (DXF) General | Publication -- | --- Product Cutsheet | -- Technical Data | Publication -- | --- 889-td002_-en-p | 889-TD002 Looking for more documentation?
